EMP8021 - 600mA CMOS Linear Regulator

Name: EMP8021
SKU: EMP8021-827946

Elite Semiconductor

📥 Download Datasheet

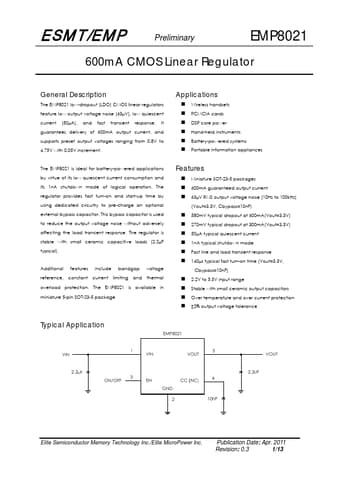

EMP8021 Datasheet Preview — Preview of EMP8021 PDF

Datasheet Details

Part number	EMP8021
Manufacturer	Elite Semiconductor
File Size	351.14 KB
Description	600mA CMOS Linear Regulator
Datasheet	EMP8021-EliteSemiconductor.pdf

EMP8021 Product details

Description

The EMP8021 low-dropout (LDO) CMOS linear regulators feature low output voltage noise (63µV), low quiescent current (50µA), and fast transient response.

Features

g g g Miniature SOT-23-5 packages 600mA guaranteed output current 63µV RMS output voltage noise (10Hz to 100kHz) (Vout=3.3V, Cbypass=10nF) g g g g g g 580mV typical dropout at 600mA(Vout=3.3V) 270mV typical dropout at 300mA(Vout=3.3V) 50µA typical quiescent current 1nA typical shutdown mode Fast line and load transient response 140µs typical fast turn-on time (Vout=3.3V, Cbypass=10nF) g g g g 2.2V to 5.5V input range Stable with small ceramic output capacitors Over temperature and over current p.
