EMA1003 - 1.2W Fully Differential Audio Power Amplifier

Name: EMA1003
SKU: EMA1003-826681

Elite Semiconductor

📥 Download Datasheet

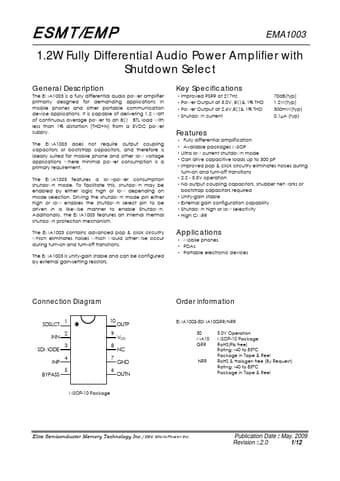

EMA1003 Datasheet Preview — Preview of EMA1003 PDF

Datasheet Details

Part number	EMA1003
Manufacturer	Elite Semiconductor
File Size	275.06 KB
Description	1.2W Fully Differential Audio Power Amplifier
Datasheet	EMA1003-EliteSemiconductor.pdf

EMA1003 Product details

Description

The EMA1003 is a fully differential audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications.

Features

a low-power consumption shutdown mode. To facilitate this, shutdown may be enabled by either logic high or low depending on mode selection. Driving the shutdown mode pin either high or low enables the shutdown select pin to be driven in a likewise manner to enable Shutdown. Additionally, the EMA1003 features an internal thermal shutdown protection mechanism. The EMA1003 contains advanced pop & click circuitry which eliminates noises which would otherwise occur during turn-on and turn-off transit.
