EL2444C - Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp

Product Overview

Elantec Semiconductor

📥 Download Datasheet

EL2444C Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp by Elantec Semiconductor - Datasheet Preview — Datasheet preview – EL2444C

Datasheet Details

Part number	EL2444C
Manufacturer	Elantec Semiconductor
File Size	513.67 KB
Description	Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp
Datasheet	EL2444C Datasheet
Note	This datasheet PDF includes multiple part numbers: EL2444C, EL2244C. Please refer to the document for exact specifications by model.

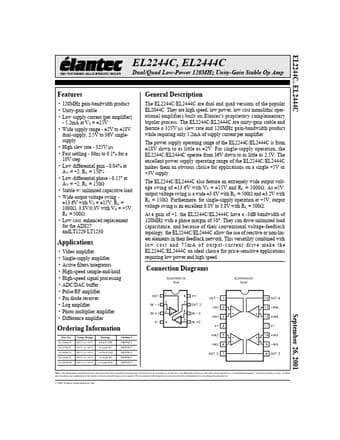

Additional preview pages of the EL2444C datasheet.

Product details

Features

120MHz gain-bandwidth product.
Unity-gain stable.
Low supply current (per amplifier) - 5.2mA at VS = ±15V.
Wide supply range - ±2V to ±18V dual-supply, 2.5V to 36V singlesupply.
High slew rate - 325V/µs.
Fast settling - 80ns to 0.1% for a 10V step.
Low differential gain - 0.04% at AV = +2, RL = 150¾.
Low differential phase - 0.15° at AV = +2, RL = 150Ω.
Stable w/ unlimited capacitive load.
Wide output vol.
