EL2410C - Low Cost/ Dual/ Triple and Quad Video Op Amps

Download the EL2410C datasheet PDF (EL2210C included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for low cost/ dual/ triple and quad video op amps.

Features

  • Stable at gain of 2 and 100MHz gain_bandwidth product (EL2211C, EL2311C, & EL2411C).
  • Stable at gain of 1 and 50MHz gain_bandwidth product (EL2210C, EL2310C, & EL2410C).
  • 130V/µs slew rate.
  • Drives 150Ω load to video levels.
  • Inputs and outputs operate at negative supply rail.
  • ±5V or +10V supplies.
  • -60dB isolation at 4.2MHz.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EL2210C_ElantecSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EL2410C
Manufacturer Elantec Semiconductor
File Size 190.01 KB
Description Low Cost/ Dual/ Triple and Quad Video Op Amps
Datasheet download datasheet EL2410C Datasheet

📁 Similar Datasheet

  • EL240.128.45 - EL Small Graphics Display (Planar Systems)
  • EL2423 - Quad Dc-Compensated High Speed Operational Amplifier (Elantec)
  • EL2423C - Quad Dc-Compensated High Speed Operational Amplifier (Elantec)
  • EL2423D - Quad Dc-Compensated High Speed Operational Amplifier (Elantec)
  • EL2424 - Quad 60 Mhz High Speed Operational Amplifier (Elantec)
  • EL2424C - Quad 60 Mhz High Speed Operational Amplifier (Elantec)
  • EL2444 - Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp (Intersil)
  • EL2445 - Dual/Quad Low-Power 100MHz Gain-of-2 Stable Op Amp (Intersil)
  • EL2450 - 125MHz Single Supply Dual/Quad Op Amps (Intersil)
  • EL2450 - (EL2250 / EL2450) 125MHz Single Supply Dual/Quad Op Amps (Intersil Corporation)
Other Datasheets by Elantec Semiconductor
  • EL2411C - Low Cost/ Dual/ Triple and Quad Video Op Amps
  • EL2444C - Dual/Quad Low-Power 120MHz Unity-Gain Stable Op Amp
  • EL2445C - Dual/Quad Low-Power 100MHz Gain-of-2 Stable Op Amp
  • EL2450C - 125MHz Single Supply Dual/Quad Op Amps
  • EL2460C - Dual/Quad 130 MHz Current Feedback Amplifiers
  • EL2470C - 70 MHz/1 mA Current Mode Feedback Amplifiers
  • EL2480C - 250MHz / 3mA Current Mode Feedback Amplifiers
  • EL2170C - 70 MHz/1 mA Current Mode Feedback Amplifiers

Full PDF Text Transcription

Click to expand full text

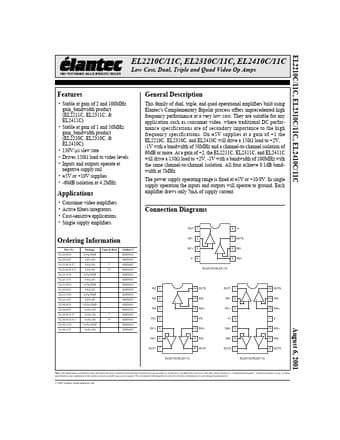

EL2210C/11C, EL2310C/11C, EL2410C/11C EL2210C/11C, EL2310C/11C, EL2410C/11C Low Cost, Dual, Triple and Quad Video Op Amps Features • Stable at gain of 2 and 100MHz gain_bandwidth product (EL2211C, EL2311C, & EL2411C) • Stable at gain of 1 and 50MHz gain_bandwidth product (EL2210C, EL2310C, & EL2410C) • 130V/µs slew rate • Drives 150Ω load to video levels • Inputs and outputs operate at negative supply rail • ±5V or +10V supplies • -60dB isolation at 4.
