UT54ACS151 - 1 of 8 data selector/multiplexer

Description

The UT54ACS151 and the UT54ACTS151 are data multiplexers that provide full binary decoding to select one of eight data sources.

The strobe input, G, must be at a low logic level to enable the inputs.

A high level at the strobe terminal forces the Y output high and the Y output low.

Features

  • 8-line to 1-line multiplexers can perform as Boolean function generators, parallel-to-serial converters, and data source selectors.
  • radiation-hardened CMOS Latchup immune www. DataSheet4U. com.
  • High speed.
  • Low power consumption.
  • Single 5 volt supply.
  • Available QML Q or V processes.
  • Flexible package - 16-pin DIP - 16-lead flatpack.

📥 Download Datasheet

Datasheet Details

Part number UT54ACS151
Manufacturer Unknown Manufacturer
File Size 68.32 KB
Description 1 of 8 data selector/multiplexer
Datasheet download datasheet UT54ACS151 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UT54ACS151 1 of 8 Data Selectors/Multiplexers Aeroflex Circuit Technology
UT54ACS153 Dual 4 to 1 Multiplexers Aeroflex Circuit Technology
UT54ACS157 Quadruple 2 to 1 Multiplexers Aeroflex Circuit Technology
UT54ACS10 Triple 3-Input NAND Gates Aeroflex Circuit Technology
UT54ACS109 Radiation-Hardened Dual J-K Flip-Flops Aeroflex Circuit Technology

Other Datasheets by Unknown Manufacturer

Part Number Description
UT54ACS157 Quadrouple 2 to 1 Multiplexers
UT54ACS10 triple three-input NAND gates
UT54ACS11 triple three-input AND gates
UT54ACS132 Radiation-Hardened Quadruple 2-Input NAND Schmitt Triggers
UT54ACS138 3-Line to 8-Line Decoders/Demultiplexers

Full PDF Text Transcription

Click to expand full text

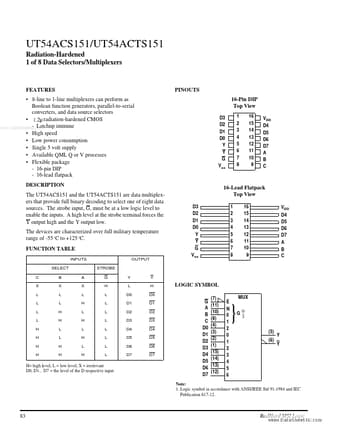

UT54ACS151/UT54ACTS151 Radiation-Hardened 1 of 8 Data Selectors/Multiplexers FEATURES • 8-line to 1-line multiplexers can perform as Boolean function generators, parallel-to-serial converters, and data source selectors • radiation-hardened CMOS Latchup immune www.DataSheet4U.com • High speed • Low power consumption • Single 5 volt supply • Available QML Q or V processes • Flexible package - 16-pin DIP - 16-lead flatpack DESCRIPTION The UT54ACS151 and the UT54ACTS151 are data multiplexers that provide full binary decoding to select one of eight data sources. The strobe input, G, must be at a low logic level to enable the inputs. A high level at the strobe terminal forces the Y output high and the Y output low.
