TF1102CG 10/100BASE-Tx Magnetics Module

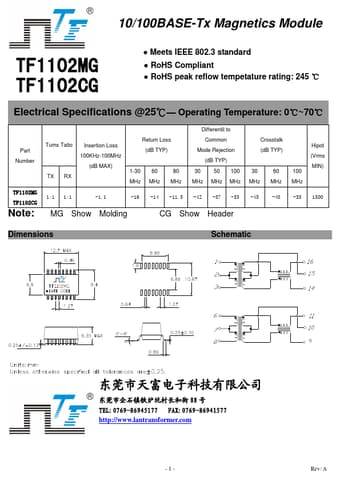

10/100BASE-Tx Magnetics Module TF1102MG TF1102CG Meets IEEE 802.3 standard RoHS Compliant RoHS peak reflow tempetature rating: 245 ℃ Electrical Specifications @25℃ Operating Temperature: 0℃~70℃ Part Number TF1102MG TF1102CG Note: Tums Tatio TX RX Insertion Loss 100KHz-100MHz (dB MAX) Retum Loss (dB TYP) 1-30 60 MHz MHz 80 MHz Differentil to Common Mode Rejection (dB TYP) 30 50 100 MHz MHz MHz 1:1 1:1 -1.1 -16 -14 -11.5 -42 -37 -33 MG Show Molding CG Show.

TF1102MG-ETC.pdf

TF1102CG Datasheet Preview — This datasheet PDF includes multiple part numbers: TF1102CG, TF1102MG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TF1102CG, TF1102MG

Manufacturer:

ETC

File Size:

130.60 KB

Description:

10/100base-tx magnetics module.

Note:

This datasheet PDF includes multiple part numbers: TF1102CG, TF1102MG.
Please refer to the document for exact specifications by model.
