TF1003C LG1605DXB Limiting Amplifier

TF1003C Description

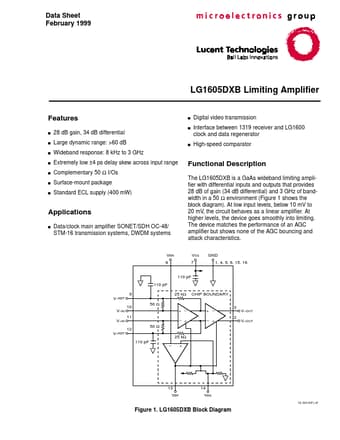

Data Sheet February 1999 LG1605DXB Limiting Amplifier .
The LG1605DXB is a GaAs wideband limiting amplifier with differential inputs and outputs that provides 28 dB of gain (34 dB differential) and 3 GHz of.

TF1003C Features

* s s s s s s s s s Digital video transmission Interface between 1319 receiver and LG1600 clock and data regenerator High-speed comparator 28 dB gain, 34 dB differential Large dynamic range: >60 dB Wideband response: 8 kHz to 3 GHz Extremely low ±4 ps delay skew across input range Complementary 50 Ω

TF1003C Applications

* s Data/clock main amplifier SONET/SDH OC-48/ STM-16 transmission systems, DWDM systems VBR 8 110 pF 110 pF V
* REF V
* IN V+IN V+REF 110 pF
* 9 10 11 12 50 Ω 25 kΩ + 50 Ω +
* + +
* + 25 kΩ CHIP BOUNDARY 3 2 V
* OUT V+OUT 13 VBF 14 V
