Datasheet Details
Part number:
TCC8901, TCC8900
Manufacturer:
ETC
File Size:
1.83 MB
Description:
(tcc8900 - tcc8902) development board.
Note:
This datasheet PDF includes multiple part numbers: TCC8901, TCC8900.
Please refer to the document for exact specifications by model.
TCC8901, TCC8900, (TCC8900 - TCC8902) Development Board

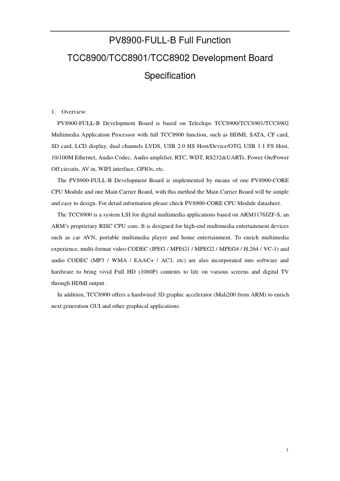

PV8900-FULL-B Full Function TCC8900/TCC8901/TCC8902 Development Board Specification 1.
Overview: PV8900-FULL-B Development Board is based on Telechips TCC8900/TCC8901/TCC8902 Multimedia Application Processor with full TCC8900 function, such as HDMI, SATA, CF card, SD card, LCD display, dual channels LVDS, USB 2.0 HS Host/Device/OTG, USB 1.1 FS Host, 10/100M Ethernet, Audio Codec, Audio amplifier, RTC, WDT, RS232&UARTs, Power On/Power Off circuits, AV in, WIFI interface, GPIOs, etc.
The PV8900-F
TCC8901 Features
* Boot Mode Dimensions Operation Temperature Power supply Accessories Option Accessories Target Application STB, PVR, PMP, Portable Navigation, Car AV / AVN, Jukebox Warranty One year Delivery Within 2-3 working days after payment confirmed 3 3. TCC890x Function Block Diagram 4. Company Informat
