TCC110 - Caller ID on Call Waiting Receiver

Telechips

The TCC110 by Telechips is a Caller ID on Call Waiting Receiver. Below is the official datasheet preview.

📥 Download Datasheet

TCC110 Caller ID on Call Waiting Receiver by Telechips - Datasheet Preview — Official preview page of the **TCC110** Caller ID on Call Waiting Receiver datasheet (Telechips).

Datasheet Details

Part number	TCC110
Manufacturer	Telechips
File Size	641.59 KB
Description	Caller ID on Call Waiting Receiver
Datasheet	TCC110_Telechips.pdf

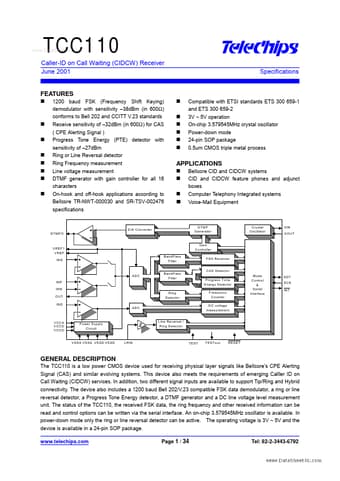

Additional preview pages of the TCC110 datasheet.

TCC110 Product details

Description

The TCC110 is a low power CMOS device used for receiving physical layer signals like Bellcore's CPE Alerting Signal (CAS) and similar evolving systems.

Features

1200 baud FSK (Frequency Shift Keying).
Compatible with ETSI standards ETS 300 659-1.
.
.
.
.
3V ~ 5V operation On-chip 3.579545MHz crystal oscillator Power-down mode 24-pin SOP package 0.5um CMOS triple metal process.
Receive sensitivity of.
32dBm (in 600Ω) for CAS ( CPE Alerting Signal ).
Progress Tone Energy (PTE) detector with sensitivity of.
27dBm.
.
.
.
