STS2320, N-Channel Enhancement Mode Field Effect Transistor

SamHop Microelectronics Corp.STS2320 Oct .29 2004 V1.1 N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY VDSS 20V .

STS2320_ETC.pdf

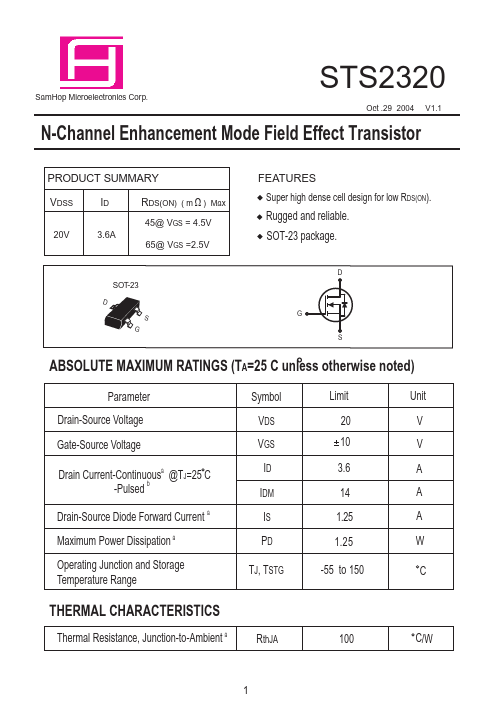

STS2320 Datasheet Preview — Preview of STS2320 PDF

Datasheet Details

Part number:

STS2320

Manufacturer:

ETC

File Size:

603.85 KB

Description:

N-Channel Enhancement Mode Field Effect Transistor

Features

* ( m W ) Max ID 3.6A RDS(ON) Super high dense cell design for low RDS(ON). 45@ VGS = 4.5V 65@ VGS =2.5V Rugged and reliable. SOT-23 package. D SOT-23 D S G G S ABSOLUTE MAXIMUM RATINGS (TA=25 C unless otherwise noted) Parameter Drain-Source Voltage Gate-Source Voltage Drain Current-Continuou
