SGB-2233 - DC-4.5GHz Active Bias Gain Block

Description

Sirenza Microdevices’ SGB-2233 is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with an active bias network.

The active bias network provides stable current over temperature and process Beta variations.

Features

  • a Class 1C ESD rating, low thermal resistance , and unconditional stability. The SGB-2233 product is designed for high linearity 3V gain block.

📥 Download Datasheet

Datasheet Details

Part number SGB-2233
Manufacturer Unknown Manufacturer
File Size 194.39 KB
Description DC-4.5GHz Active Bias Gain Block
Datasheet download datasheet SGB-2233 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SGB-2233 DC to 4.5GHZ ACTIVE BIAS GAIN BLOCK RF Micro Devices
SGB-2233Z DC - 4.5 GHz Active Bias Gain Block Sirenza Microdevices
SGB-2233Z DC to 4.5GHZ ACTIVE BIAS GAIN BLOCK RF Micro Devices
SGB-2433 DC - 4 GHz Active Bias Gain Block Stanford Microdevices
SGB-2433Z DC - 4 GHz Active Bias Gain Block Sirenza Microdevices

Other Datasheets by Unknown Manufacturer

Part Number Description
SGB-4533 DC - 3 GHz Active Bias Gain Block

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

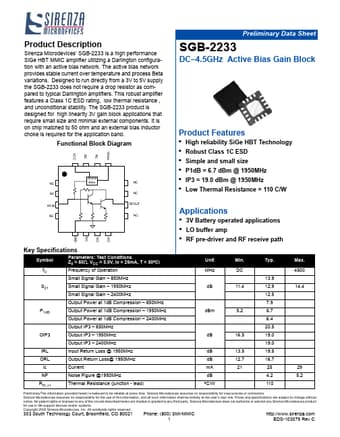

Preliminary Data Sheet Product Description Sirenza Microdevices’ SGB-2233 is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V to 5V supply the SGB-2233 does not require a drop resistor as compared to typical Darlington amplifiers. This robust amplifier features a Class 1C ESD rating, low thermal resistance , and unconditional stability. The SGB-2233 product is designed for high linearity 3V gain block applications that require small size and minimal external components. It is on chip matched to 50 ohm and an external bias inductor choke is required for the application band. SGB-2233 DC–4.
