MACH210 Datasheet (ETC) - 44 pin QFP socket/28 pin DIP 0.6 plug

MACH210, 44 pin QFP socket/28 pin DIP 0.6 plug

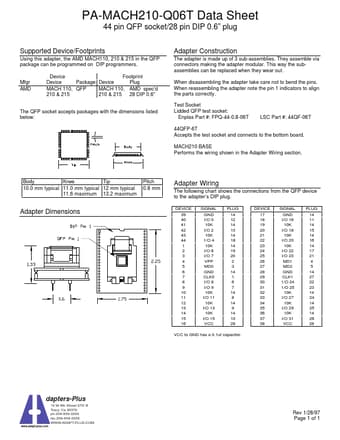

PA-MACH210-Q06T Data Sheet 44 pin QFP socket/28 pin DIP 0.6” plug Supported Device/Footprints Using this adapter, the AMD MACH110, 210 & 215 in the QFP package can be programmed on DIP programmers.

Device Footprint Device Package Device Plug MACH 110, QFP MACH 110, AMD spec'd 210 & 215 210 & 215 28 DIP 0.6" Adapter Construction The adapter is made up of 3 sub-assemblies.

They assemble via connectors making the adapter modular.

This way the subassemblies can be replaced when they wear out.

When
