MACH210A-7 Datasheet (Advanced Micro Devices) - High-Density EE CMOS Programmable Logic

MACH210A-7, High-Density EE CMOS Programmable Logic

The MACH210 is a member of AMD’s high-performance EE CMOS MACH 2 device family.

This device has approximately six times the logic macrocell capability of the popular PAL22V10 without loss of speed.

The MACH210 consists of four PAL blocks interconnected by a programmable switch matrix.

The four PAL b

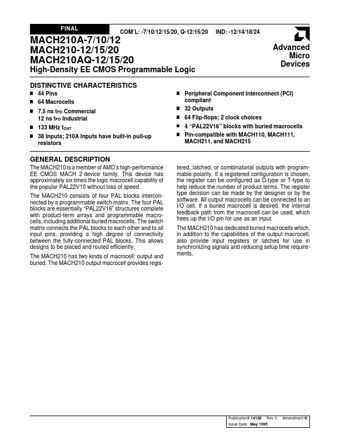

FINAL COM’L: -7/10/12/15/20, Q-12/15/20 IND: -12/14/18/24 MACH210A-7/10/12 MACH210-12/15/20 MACH210AQ-12/15/20 High-Density EE CMOS Programmable Logic DISTINCTIVE CHARACTERISTICS 44 Pins 64 Macrocells 7.5 ns tPD Commercial 12 ns tPD Industrial 133 MHz fCNT 38 Inputs; 210A Inputs have built-in pull-up resistors Advanced Micro Devices Peripheral Component Interconnect (PCI) compliant 32 Outputs 64 Flip-flops; 2 clock choices 4 “PAL22V16” blocks with buried macrocells Pin-compatible with MACH1

MACH210A-7 Features

* r can be configured
