DF82 Datasheet (ETC) - DF82 is a static/ master-slave D flip-flop with 2x drive strength

DF82, DF82 is a static/ master-slave D flip-flop with 2x drive strength

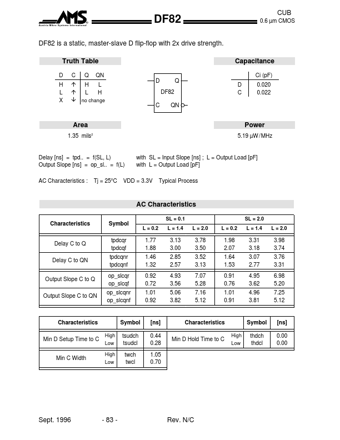

R Austria Mikro Systeme International DF82 CUB 0.6 µm CMOS DF82 is a static, master-slave D flip-flop with 2x drive strength.

Truth Table D H L X C Q QN É H L É L H Ê no change Capacitance Ci (pF) D DF82 Q D C 0.020 0.022 C QN Area 1.35 mils2 Power 5.19 µW / MHz Delay [ns] = tpd..

= f(SL, L) Output Slope [ns] = op_sl..

= f(L) AC Characteristics : Tj = 25°C with SL = Input Slope [ns] ; L = Output Load [pF] with L = Output Load [pF] Typical Process VDD = 3.3V AC Characteristics Ch
