ATS277 Complementary Output Hall Effect Latch

ATS277 Description

ATC Complementary Output Hall Effect Latch * .
ATS276/277 are integrated Hall sensors with output drivers, mainly designed for electronic commutation of brush-less DC Fan.

ATS277 Features

* - On-chip Hall sensor with two different sensitivity and hysteresis settings for ATS276/277 - 3.5V to 20V operating voltage - 400mA (avg) output sink current - Build-in protecting diode only for chip reverse power connecting - -20°C to 85°C operating temperature - Low profile 4 pin SIP package ATS2

ATS277 Applications

* Dual-coil Brush-less DC Motor Dual-coil Brush-less DC Fan Revolution Counting Speed Measurement
* Ordering Information ATS27X X - X X X - X Part No. 6 : ATS276 7 : ATS277 Wafer Body Blank or A~Z : if necessary to specify Package P: SIP-4L Lead L : Lead Free Blank: Normal Packing Blank

📥 Download Datasheet

Preview of ATS277 PDF

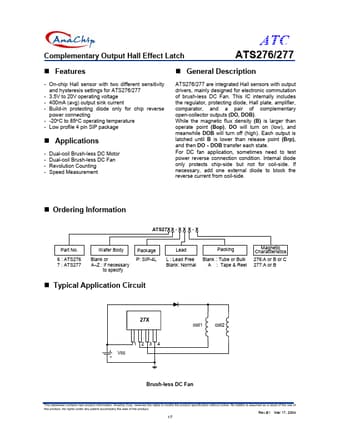

datasheet Preview Page 2 datasheet Preview Page 3
