ATS25 Manual Linear Positioning Stage

ATS25 Description

ATS25 Series Manual Linear Positioning Stage Micrometer or patented * sub-micronresolution drive 12 mm and 25 mm travel Crossed-roller bearings for.

ATS25 Applications

* An optional mounting bracket, HDZ3S, is available for applications that require a vertical mounting orientation. ATS25-12DM Range Thimble Graduation Resolution(1) Max Load Horizontal Vertical Micrometer Spindle Sub-Micron Drive 12.5 mm (0.5 in) 1 micron (40 µin) 0.1 micron (4 µin) 25 nm 22.7 kg (5

📥 Download Datasheet

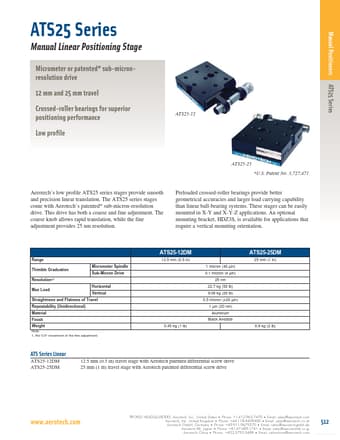

Preview of ATS25 PDF
datasheet Preview Page 2

Datasheet Details

Part number
ATS25
Manufacturer
Aerotech
File Size
93.92 KB
Datasheet
ATS25-Aerotech.pdf
Description
Manual Linear Positioning Stage
