23HY0001-01N, 23HY0001N - Hybrid Stepper Motors

📥 Download Datasheet

23HY0001-01N Datasheet Preview — This datasheet PDF includes multiple part numbers: 23HY0001-01N, 23HY0001N. Please refer to the document for exact specifications by model.

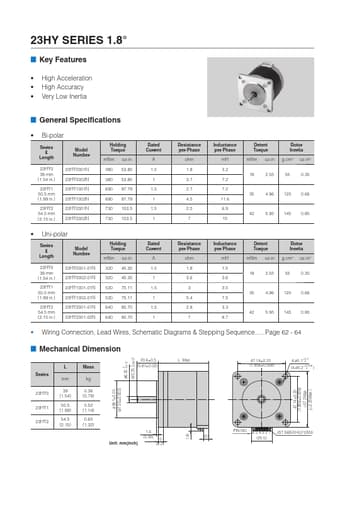

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	23HY0001-01N, 23HY0001N
Manufacturer	ETC
File Size	355.07 KB
Description	Hybrid Stepper Motors
Datasheet	23HY0001N-ETC.pdf
Note	This datasheet PDF includes multiple part numbers: 23HY0001-01N, 23HY0001N. Please refer to the document for exact specifications by model.

23HY0001-01N Product details

Features

High Acceleration.
High Accuracy.
Very Low Inertia.
General Speciﬁcations.
Bi-polar Series & Length Model Number 23HY0 39 mm (1.54 in. ) 23HY1 50.5 mm (1.99 in. ) 23HY2 54.5 mm (2.15 in. ) 23HY0001N 23HY0002N 23HY1001N 23HY1002N 23HY2001N 23HY2002N Holding Torque mNm oz-in 380 53.85 380 53.85 690 97.79 690 97.79 730 103.5 730 103.5 Rated Current A 1.5 1 1.5 1 1.5 1 Resistance per Phase ohm 1.8 3.7 2.7 4.5 2.5 7 Inductance per Phase mH 3.2 7.2 7.2.
