23HY5460 - 2 Phase Hybrid Stepper Motor

Download the 23HY5460 datasheet PDF. This datasheet also covers the 23HY4607 variant, as both devices belong to the same 2 phase hybrid stepper motor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (23HY4607-MotionKing.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 23HY5460
Manufacturer MotionKing
File Size 98.82 KB
Description 2 Phase Hybrid Stepper Motor
Datasheet download datasheet 23HY5460 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
23HY0001-01N Hybrid Stepper Motors ETC
23HY0001N Hybrid Stepper Motors ETC
23HY0002-01N Hybrid Stepper Motors ETC
23HY0002N Hybrid Stepper Motors ETC
23HY0407-01 Hybrid Stepper Motors ETC

Other Datasheets by MotionKing

Part Number Description
23HY5481 2 Phase Hybrid Stepper Motor
23HY5607 2 Phase Hybrid Stepper Motor
23HY5627 2 Phase Hybrid Stepper Motor
23HY5666 2 Phase Hybrid Stepper Motor
23HY4455 2 Phase Hybrid Stepper Motor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

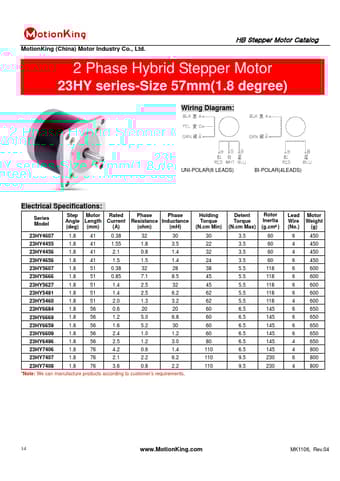

MotionKing (China) Motor Industry Co., Ltd. HB Stepper Motor Catalog 2 Phase Hybrid Stepper Motor 23HY series-Size 57mm(1.8 degree) Wiring Diagram: UNI-POLAR(6 LEADS) BI-POLAR(4LEADS) Electrical Specifications: Series Model Step Motor Rated Phase Phase Angle Length Current Resistance Inductance (deg) (mm) (A) (ohm) (mH) 23HY4607 1.8 41 0.38 32 30 23HY4455 1.8 41 1.55 1.8 3.5 23HY4456 1.8 41 2.1 0.8 1.4 23HY4656 1.8 41 1.5 1.5 1.4 23HY5607 1.8 51 0.38 32 28 23HY5666 1.8 51 0.85 7.1 8.5 23HY5627 1.8 51 1.4 2.5 32 23HY5481 1.8 51 1.4 2.5 6.2 23HY5460 1.8 51 2.0 1.3 3.2 23HY6684 1.8 56 0.6 20 20 23HY6669 1.8 56 1.2 5.0 6.8 23HY6659 1.8 56 1.6 5.2 30 23HY6609 1.8 56 2.4 1.0 1.2 23HY6496 1.8 56 2.5 1.2 3.
