| Part number | ES9016 |
|---|---|
| Manufacturer | ESS |
| File Size | 329.11 KB |

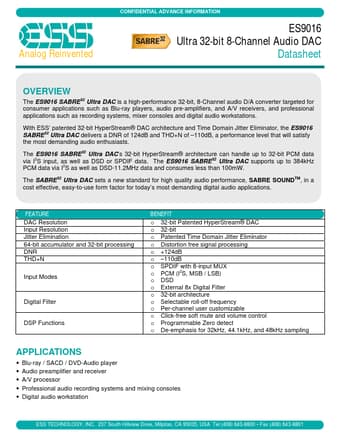

| Description | Ultra 32-bit 8-Channel Audio DAC |
| Datasheet |
 ES9016-ESS.pdf
|
| Part number | ES9016 |
|---|---|
| Manufacturer | ESS |
| File Size | 329.11 KB |
| Description | Ultra 32-bit 8-Channel Audio DAC |
| Datasheet |
ES9016-ESS.pdf
|
Pin Name 1 DAC1 2 DAC1B 3 DAC3B 4 DAC3 5 GND 6 AVCC_L 7 RESET 8 GND 9 DAC5 10 DAC5B 11 DAC7B 12 DAC7 13 VDD 14 AVCC_L 15 GND 16 SDA 17 SCL 18 XO 19 XI (MCLK) 20 DVCC_B 21 VDD 22 GND 23 GND 24 AVCC_R 25 VDD 26 DAC8 27 DAC8B 28 DAC6B 29 DAC6 30 AUTOMUTE 31 AVCC_R 32 GND 33 DAC4 34 DAC4B 35 DAC2B 36 DAC2 37 GND 38 DATA8 39 DATA7 40 DATA6 Pin Type O O O O Ground Power I Ground O O O O Power Power Ground I/O I O I Power Power Ground Ground Power Power O O O O O Power Ground O O O O Ground I I I P
