ES9010K2M Datasheet (ESS) - Premier Stereo Low Power Audio DAC

ES9010K2M, Premier Stereo Low Power Audio DAC

o 32-bit audio DAC powered by Sabre32® DAC architecture with ultra high dynamic range and low distortion o Supports both synchronous and ASRC (asynchronous sample rate converter) modes o Unmatched audio clarity free from input clock jitter o HD Audio Performance o Click-free soft mute and volume con

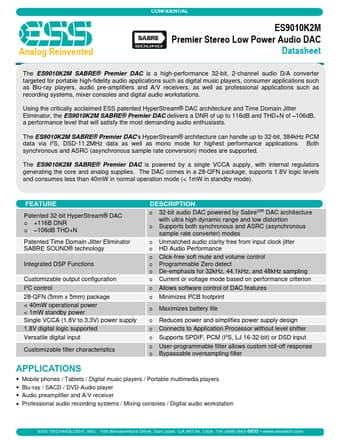

Analog Reinvented CONFIDENTIAL ES9010K2M Premier Stereo Low Power Audio DAC Datasheet The ES9010K2M SABRE® Premier DAC is a high-performance 32-bit, 2-channel audio D/A converter targeted for portable high-fidelity audio applications such as digital music players, consumer applications such as Blu-ray players, audio pre-amplifiers and A/V receivers, as well as professional applications such as recording systems, mixer consoles and digital audio workstations.

Using the critically acclaimed ESS

ES9010K2M Features

* o Minimizes PCB footprint o Maximizes battery life o Reduces power and simplifies power supply design o Connects to Application Processor without level shifter o Supports SPDIF, PCM (I2S, LJ 16-32-bit) or DSD input o User-programmable filter allows custom roll-off response o Bypassable oversampling
