M12L64164A-5TG2Y - 1M x 16 Bit x 4 Banks Synchronous DRAM

ESMT

M12L64164A-5TG2Y Description

ESMT SDRAM .
The M12L64164A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits.

M12L64164A-5TG2Y Features

* y JEDEC standard 3.3V power supply y LVTTL compatible with multiplexed address y Four banks operation y MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) y All inputs are sampled at the positive going edge of the

📥 Download Datasheet

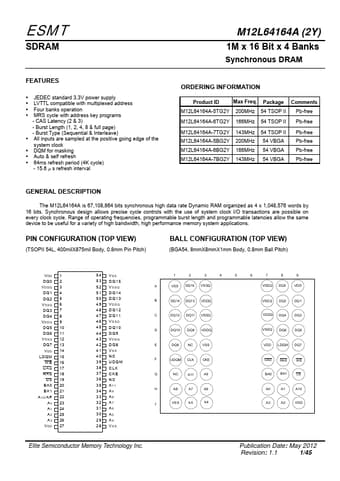

M12L64164A-5TG2Y Datasheet Preview — Preview of M12L64164A-5TG2Y PDF

Datasheet Details

Part number: M12L64164A-5TG2Y
Manufacturer: ESMT
File Size: 1.22 MB
Datasheet: M12L64164A-5TG2Y-ESMT.pdf
Description: 1M x 16 Bit x 4 Banks Synchronous DRAM
