M12L64164A-5BG2M, M12L64164A-5TG2M 1M x 16 Bit x 4 Banks Synchronous DRAM

ESMT

Description

ESMT SDRAM .
The M12L64164A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits.

📥 Download Datasheet

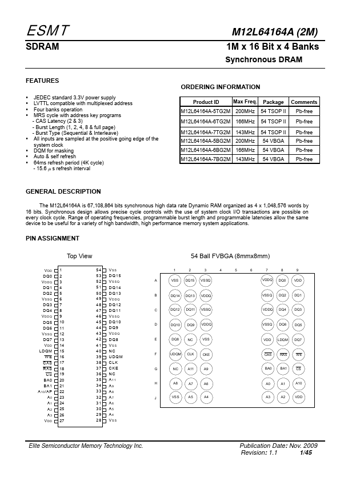

M12L64164A-5BG2M Datasheet Preview — This datasheet PDF includes multiple part numbers: M12L64164A-5BG2M, M12L64164A-5TG2M. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: M12L64164A-5BG2M, M12L64164A-5TG2M
Manufacturer: ESMT
File Size: 1.22 MB
Datasheet: M12L64164A-5TG2M-ESMT.pdf
Description: 1M x 16 Bit x 4 Banks Synchronous DRAM
Note: This datasheet PDF includes multiple part numbers: M12L64164A-5BG2M, M12L64164A-5TG2M.
Please refer to the document for exact specifications by model.

Features

* y JEDEC standard 3.3V power supply y LVTTL compatible with multiplexed address y Four banks operation y MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) y All inputs are sampled at the positive going edge of the
