M12L128168A-5TVG2N - Synchronous DRAM

ESMT

📥 Download Datasheet

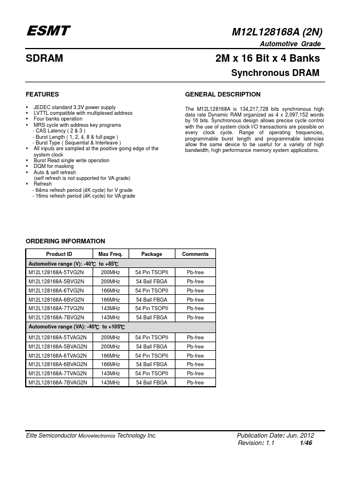

M12L128168A-5TVG2N Datasheet Preview — Preview of M12L128168A-5TVG2N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	M12L128168A-5TVG2N
Manufacturer	ESMT
File Size	1.26 MB
Description	Synchronous DRAM
Datasheet	M12L128168A-5TVG2N-ESMT.pdf

M12L128168A-5TVG2N Product details

Description

The M12L128168A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits.

Features

JEDEC standard 3.3V power supply.
LVTTL compatible with multiplexed address.
Four banks operation.
MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave ).
All inputs are sampled at the positive going edge of the system clock.
Burst Read single write operation.
DQM for masking.
Auto & self refresh (self refresh is not supported for VA grade).
Refresh - 64ms refresh.
