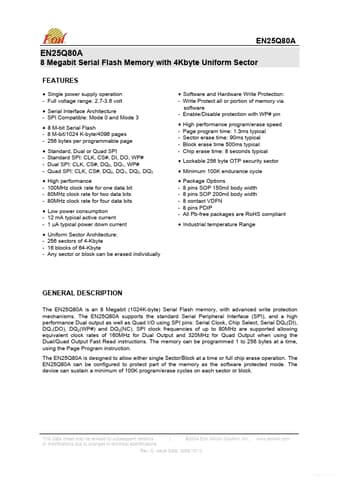

EN25Q80A
EN25Q80A
8 Megabit Serial Flash Memory with 4Kbyte Uniform Sector
FEATURES
• Single power supply operation - Full voltage range: 2.7-3.6 volt • Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3 • 8 M-bit Serial Flash - 8 M-bit/1024 K-byte/4096 pages - 256 bytes per programmable page • • Standard, Dual or Quad SPI Standard SPI: CLK, CS#, DI, DO, WP# Dual SPI: CLK, CS#, DQ0, DQ1, WP# Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3 High performance 100MHz clock rate for one data bit 80MHz clock rate for two data bits 80MHz clock rate for four data bits • Software and Hardware Write Protection: - Write Protect all or portion of memory via software - Enable/Disable protection with WP# pin • High performance program/erase speed Page program time: 1.
