25Q80BSIG - Dual and Quad Serial Flash

Datasheet Summary

Description

The GD25Q80 (8M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#).

Features

  • 8M-bit Serial Flash -1024K-byte -256 bytes per programmable page.
  • Standard, Dual, Quad SPI -Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# -Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# -Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3.
  • High Speed Clock Frequency -120MHz for fast read with 30PF load -Dual I/O Data transfer up to 180Mbits/s -Quad I/O Data transfer up to 360Mbits/s.
  • Program/Erase Speed -Page Program time: 0.7ms typical -Sector Erase time: 100ms typical -Block Erase time: 0.3.

📥 Download Datasheet

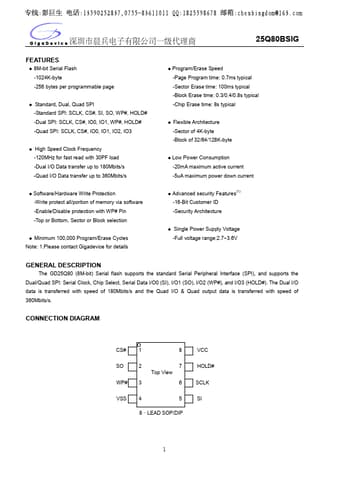

Datasheet preview – 25Q80BSIG

Datasheet Details

Part number 25Q80BSIG
Manufacturer GigaDevice
File Size 1.83 MB
Description Dual and Quad Serial Flash
Datasheet download datasheet 25Q80BSIG Datasheet
