EM78P247 - 8-BIT MICRO-CONTROLLER

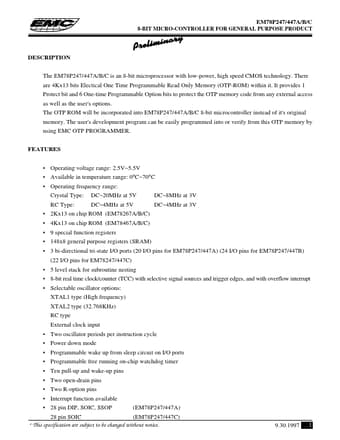

EM78P247 Datasheet Preview — Preview of EM78P247 PDF

Datasheet Details

Part number	EM78P247
Manufacturer	EMC
File Size	156.79 KB
Description	8-BIT MICRO-CONTROLLER
Datasheet	EM78P247-EMC.pdf

EM78P247 Product details

Description

EM78P247/447A/B/C 8-BIT MICRO-CONTROLLER FOR GENERAL PURPOSE PRODUCT Preliminary The EM78P247/447A/B/C is an 8-bit microprocessor with low-power, high speed CMOS technology.There are 4Kx13 bits Electical One Time Programmable Read Only Memory (OTP-ROM) within it.It provides 1 Protect bit and 6 One-time Programmable Option bits to protect the OTP memory code from any external access as well as the user's options.The OTP ROM will be incorporated into EM78P247/447A/B/C 8-bit microcontroller in

Features

Operating voltage range: 2.5V~5.5V.
Available in temperature range: 0°C~70°C.
Operating frequency range: Crystal Type: DC~20MHz at 5V DC~8MHz at 3V RC Type: DC~4MHz at 5V DC~4MHz at 3V.
2Kx13 on chip ROM (EM78267A/B/C).
4Kx13 on chip ROM (EM78467A/B/C).
9 special function registers.
148x8 general purpose registers (SRAM).
3 bi-directional tri-state I/O ports (20 I/O pins for EM78P247/447A) (24 I/O pins for EM78.
