EM78P211 - 8-Bit Microcontroller

ELAN Microelectronics

📥 Download Datasheet

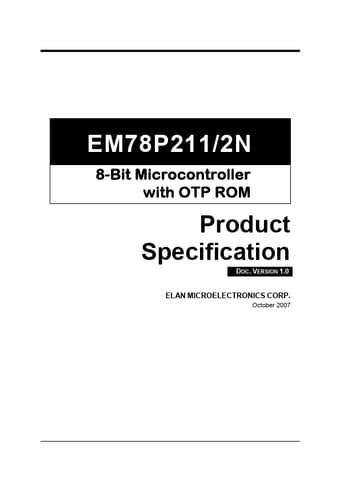

EM78P211 Datasheet Preview — Preview of EM78P211 PDF

Datasheet Details

Part number	EM78P211
Manufacturer	ELAN Microelectronics
File Size	847.01 KB
Description	8-Bit Microcontroller
Datasheet	EM78P211_ELANMicroelectronics.pdf

EM78P211 Product details

Description

Preliminary version. Product Specification (V1.0) 03.20.2007 EM78P211/2N 8-Bit Microprocessor with OTP ROM 1 General Description EM78P211N and EM78P212N are 8-bit microprocessors designed and developed with low-power and high-speed CMOS technology.Each device in the series has as an on-chip 2K×13-bit Electrical One Time Programmable Read Only Memory (OTP-ROM).Each provides a protection bit to prevent intrusion of user’s OTP memory code.Two Code option bits are

Features

configuration Drift Rate Internal RC Voltage Frequency Temperature Process (-40°C+85°C) (2.1V~5.5V) Total.
2K×13 bits on-chip OTP-ROM.
80×8 bits on-chip registers (SRAM).
8-level stacks for subroutine nesting.
3 programmable Level Voltage Reset (LVR) : 4.0V, 3.0V, 2.5V.
Less than 1.5 mA at 5V/4MHz.
Typically 15 µA, at 3V/32kHz.
Typically 2 µA, during sleep mode.
I/O port configuration.
4 bidirectional I/O ports: P5.
