ELM54616CWSA-N - Complementary MOSFET

Product Overview

ELM

Part number	ELM54616CWSA-N
Manufacturer	ELM
File Size	1.30 MB
Description	Complementary MOSFET
Datasheet	ELM54616CWSA-N Datasheet

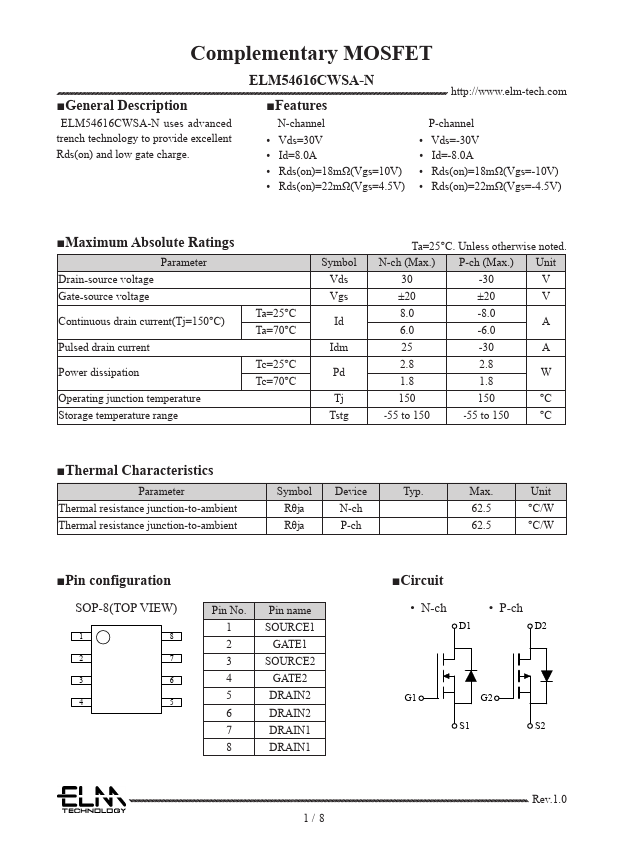

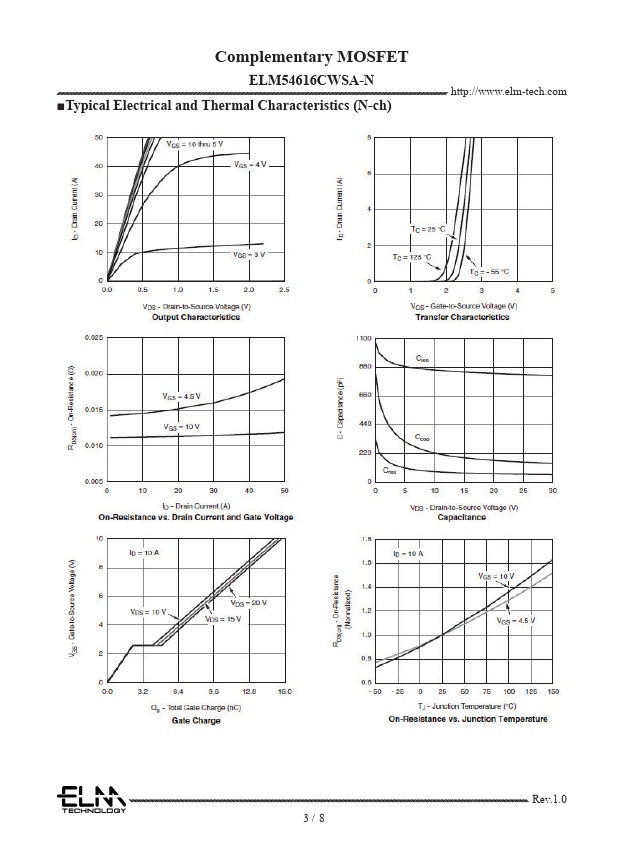

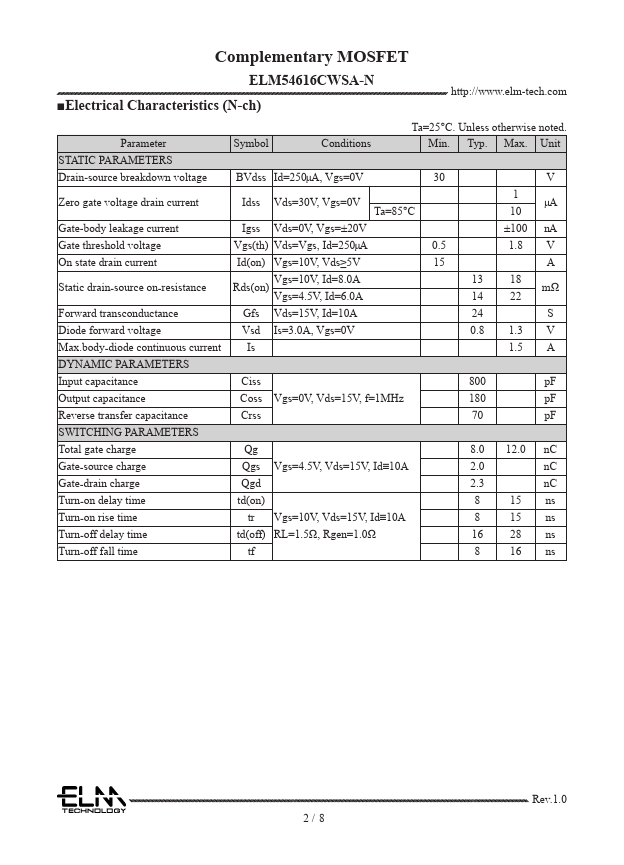

Additional preview pages of the ELM54616CWSA-N datasheet.

ELM54616CWSA-N uses advanced trench technology to provide excellent Rds(on) and low gate charge.

N-channel.
Vds=30V.
Id=8.0A.
Rds(on)=18mΩ(Vgs=10V).
Rds(on)=22mΩ(Vgs=4.5V) http://www. elm-tech. com P-channel.
Vds=-30V.
Id=-8.0A.
Rds(on)=18mΩ(Vgs=-10V).
Rds(on)=22mΩ(Vgs=-4.5V).
Maximum Absolute Ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C S.
