ELM4P6105FDA-N - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

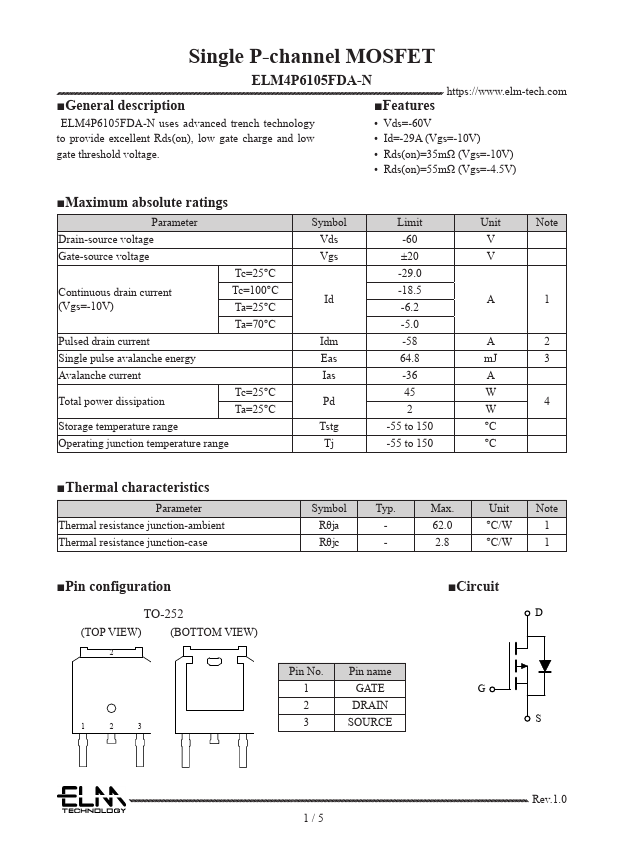

ELM4P6105FDA-N Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4P6105FDA-N

Datasheet Details

Part number	ELM4P6105FDA-N
Manufacturer	ELM
File Size	1.58 MB
Description	Single P-channel MOSFET
Datasheet	ELM4P6105FDA-N Datasheet

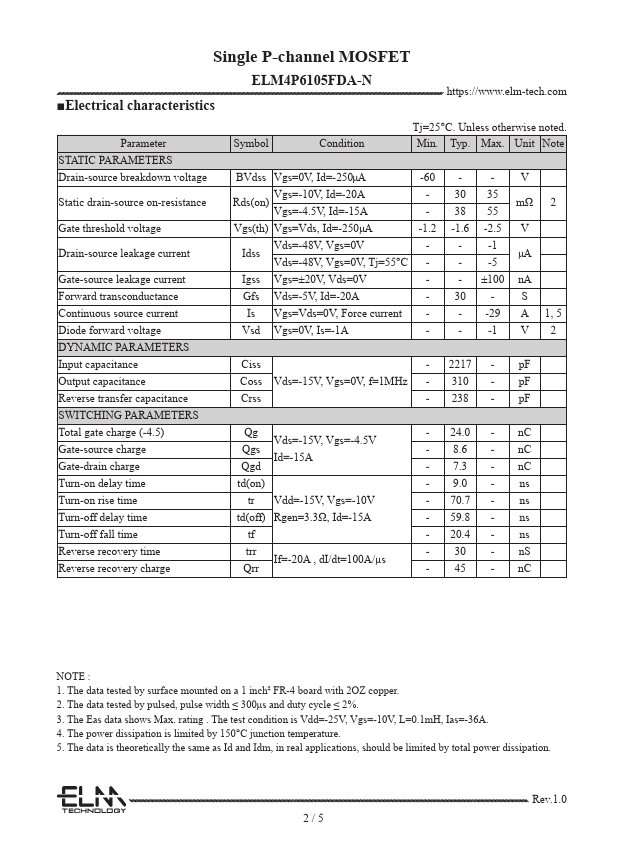

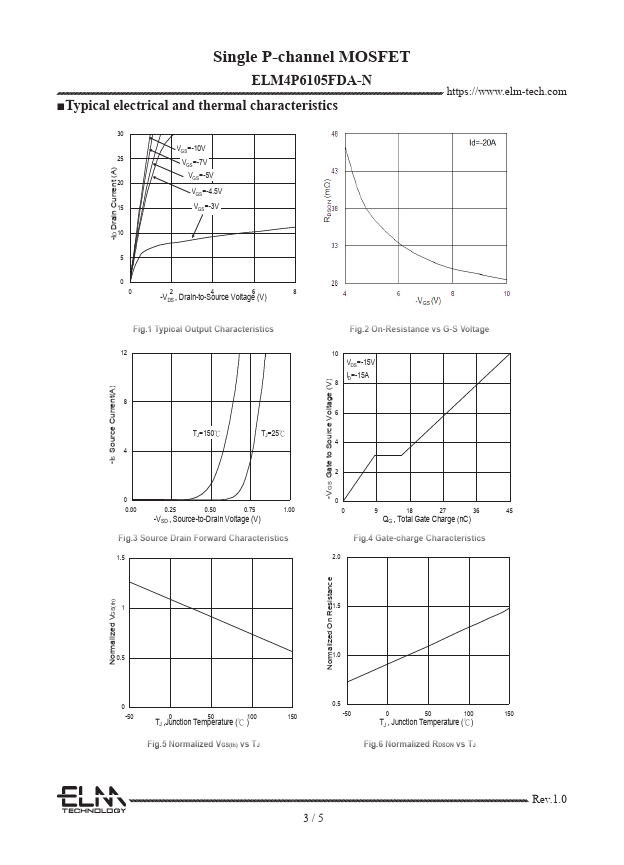

Additional preview pages of the ELM4P6105FDA-N datasheet.

Product details

Features

ELM4P6105FDA-N uses advanced trench technology.
Vds=-60V to provide excellent Rds(on), low gate charge and low.
Id=-29A (Vgs=-10V) gate threshold voltage.
Rds(on)=35mΩ (Vgs=-10V).
Rds(on)=55mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Tc=25°C Continuous drain current (Vgs=-10V) Tc=100°C Ta=25°C Ta=70°C Pulsed drain current Single pulse avalanche energy Avalanche current Total power dissipa.
