ELM4P4103FAA-N - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

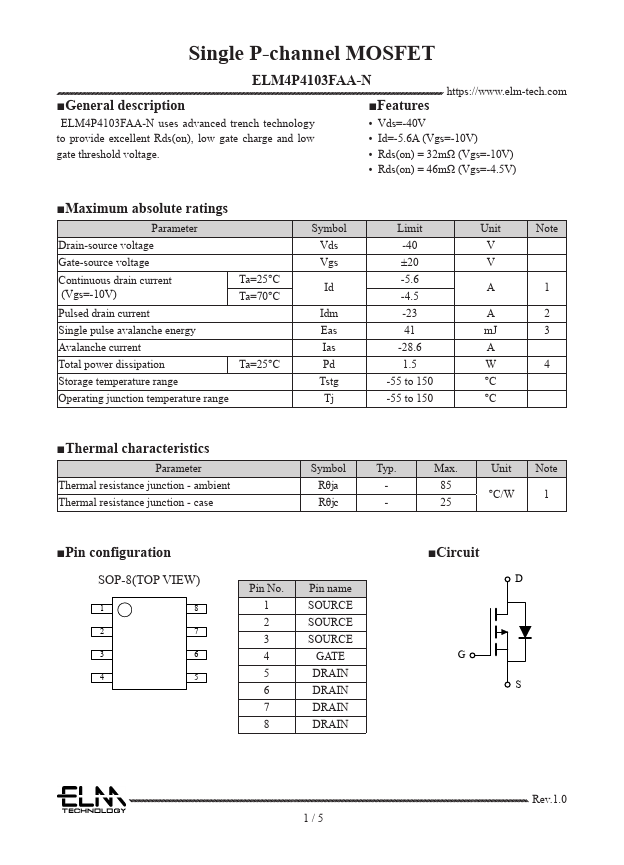

ELM4P4103FAA-N Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4P4103FAA-N

Datasheet Details

Part number	ELM4P4103FAA-N
Manufacturer	ELM
File Size	661.30 KB
Description	Single P-channel MOSFET
Datasheet	ELM4P4103FAA-N Datasheet

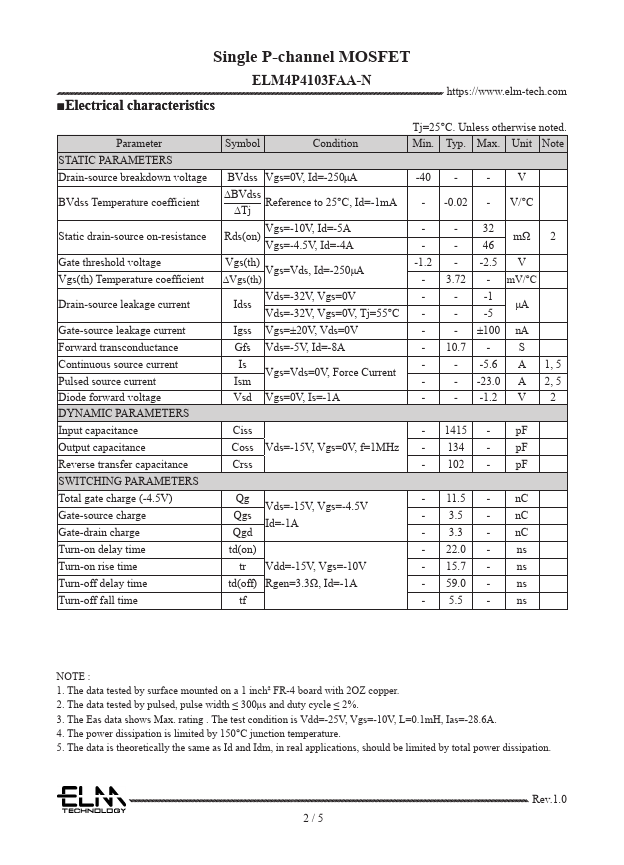

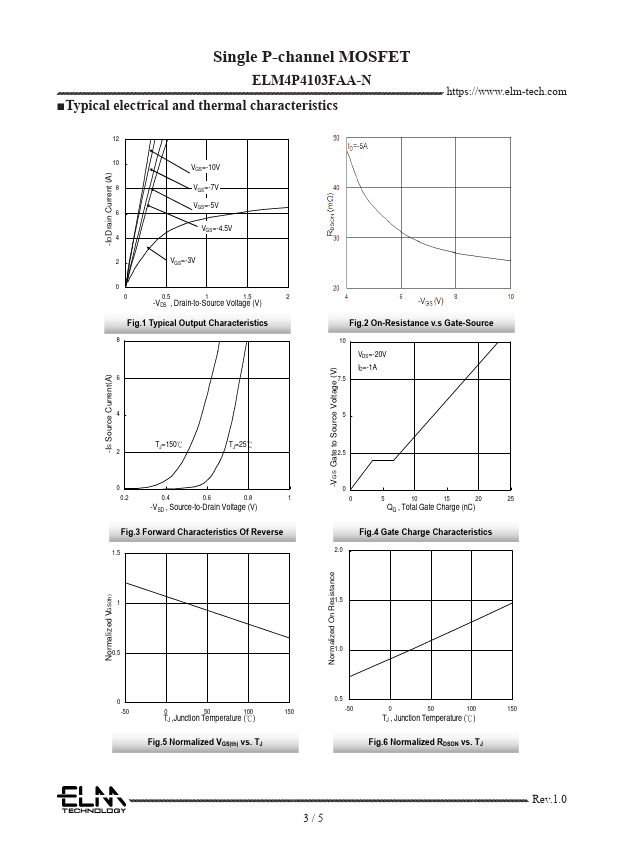

Additional preview pages of the ELM4P4103FAA-N datasheet.

Product details

Features

ELM4P4103FAA-N uses advanced trench technology.
Vds=-40V to provide excellent Rds(on), low gate charge and low.
Id=-5.6A (Vgs=-10V) gate threshold voltage.
Rds(on) = 32mΩ (Vgs=-10V).
Rds(on) = 46mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=-10V) Pulsed drain current Single pulse avalanche energy Avalanche current Total power dissipation Storage temperature range Operati.
