ELM4N6032FAA-N - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

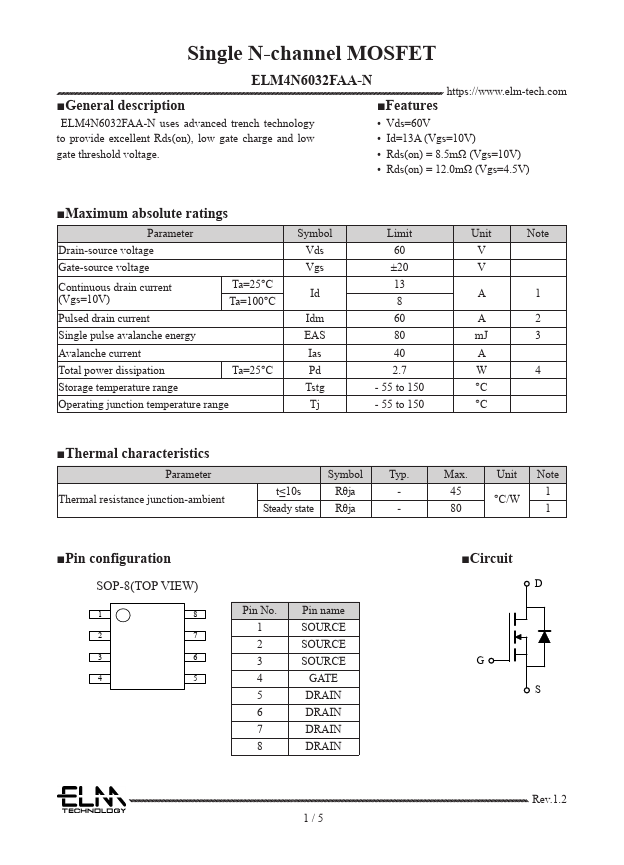

ELM4N6032FAA-N Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4N6032FAA-N

Datasheet Details

Part number	ELM4N6032FAA-N
Manufacturer	ELM
File Size	518.19 KB
Description	Single N-channel MOSFET
Datasheet	ELM4N6032FAA-N Datasheet

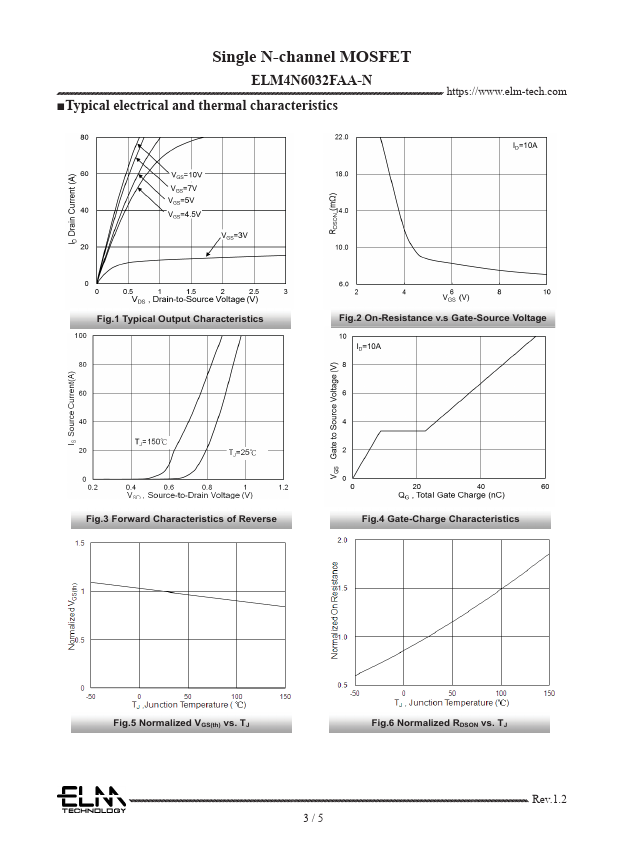

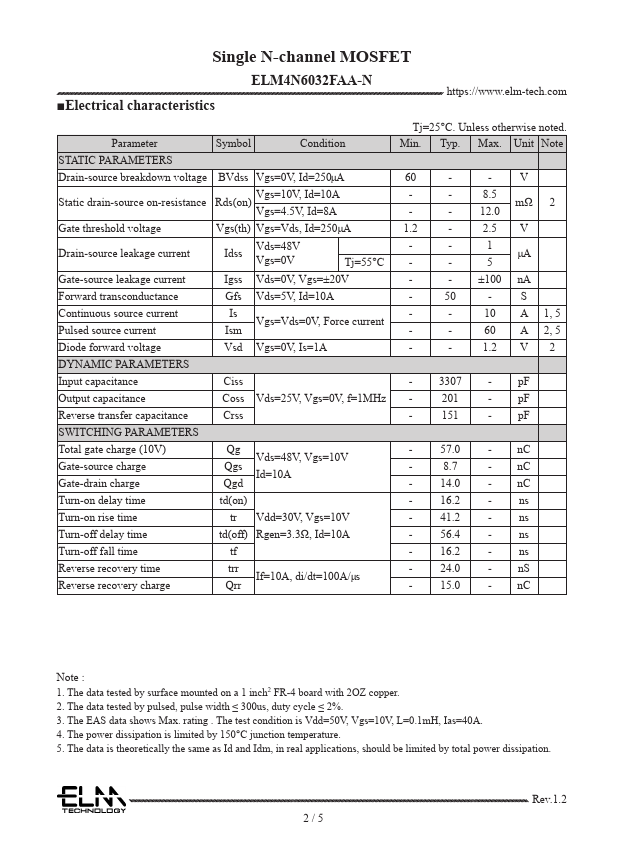

Additional preview pages of the ELM4N6032FAA-N datasheet.

Product details

Features

ELM4N6032FAA-N uses advanced trench technology.
Vds=60V to provide excellent Rds(on), low gate charge and low.
Id=13A (Vgs=10V) gate threshold voltage.
Rds(on) = 8.5mΩ (Vgs=10V).
Rds(on) = 12.0mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=10V) Ta=25°C Ta=100°C Pulsed drain current Single pulse avalanche energy Avalanche current Total power dissipation Ta=25°C St.
