ELM4N20N15SFDA-N - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

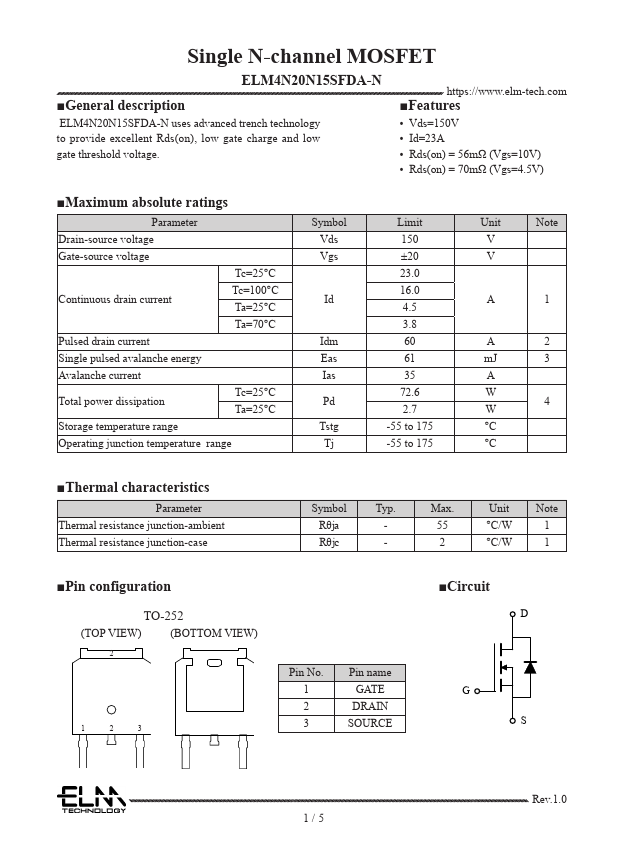

ELM4N20N15SFDA-N Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4N20N15SFDA-N

Datasheet Details

Part number	ELM4N20N15SFDA-N
Manufacturer	ELM
File Size	1.89 MB
Description	Single N-channel MOSFET
Datasheet	ELM4N20N15SFDA-N Datasheet

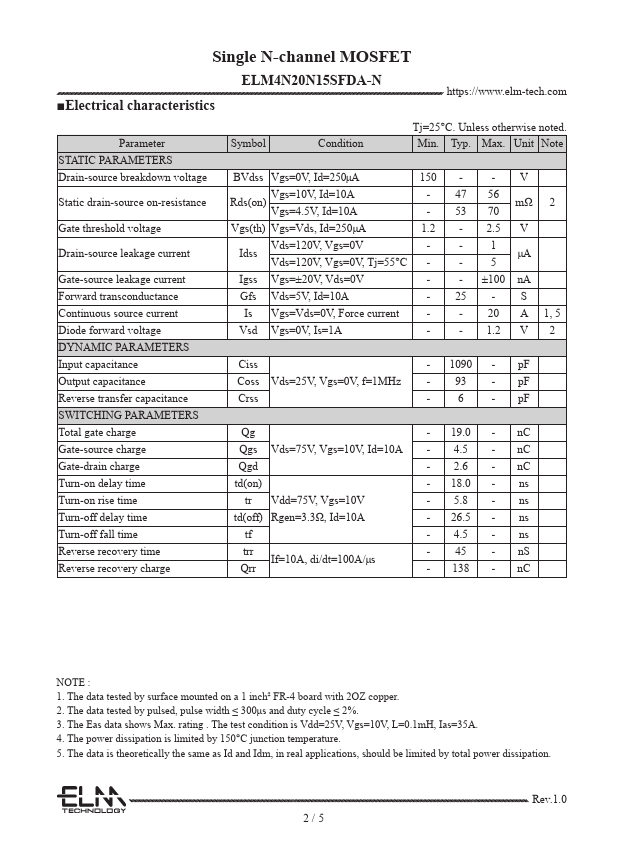

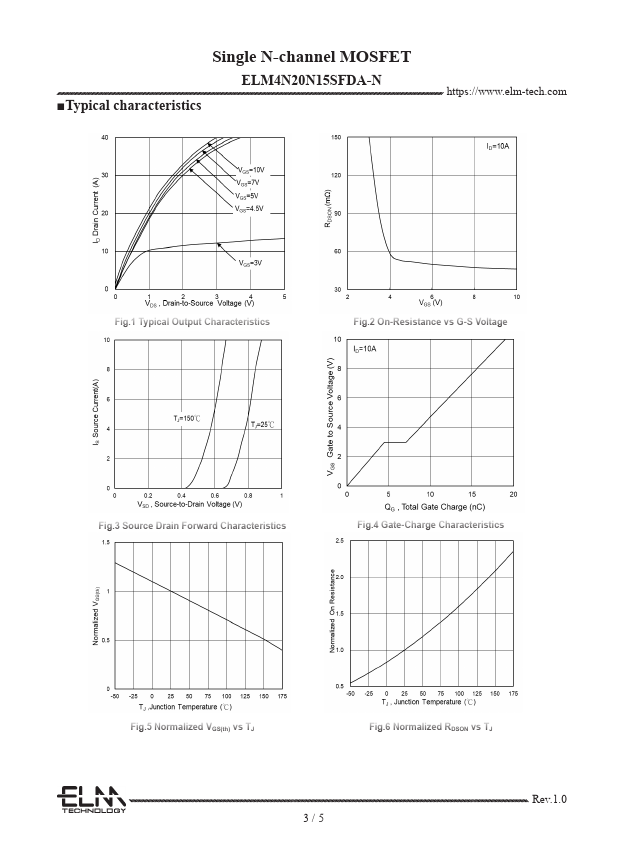

Additional preview pages of the ELM4N20N15SFDA-N datasheet.

Product details

Description

ELM4N20N15SFDA-N uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

Vds=150V.
Id=23A.
Rds(on) = 56mΩ (Vgs=10V).
Rds(on) = 70mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Tc=25°C Continuous drain current Tc=100°C Ta=25°C Ta=70°C Pulsed drain current Single pulsed avalanche energy Avalanche current Total power dissipation Tc=25°C Ta=25°C Storage temperature range Operating junction temperature range Symbol Vds Vgs Id Idm Eas Ias Pd Tstg Tj Limit 150 ±20 23.0 16.
