ELM43400CB-S - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM43400CB-S Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM43400CB-S

Datasheet Details

Part number	ELM43400CB-S
Manufacturer	ELM
File Size	1.76 MB
Description	Single N-channel MOSFET
Datasheet	ELM43400CB-S Datasheet

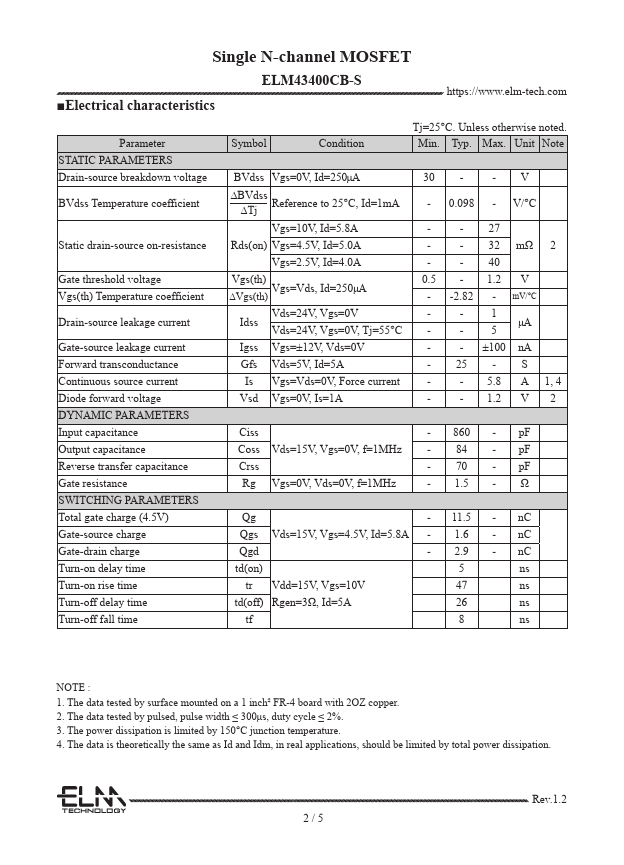

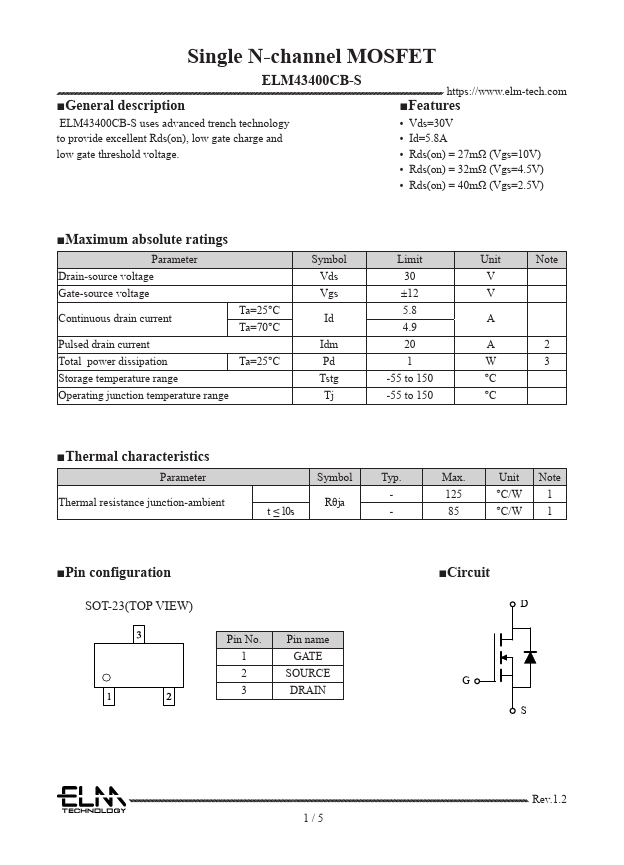

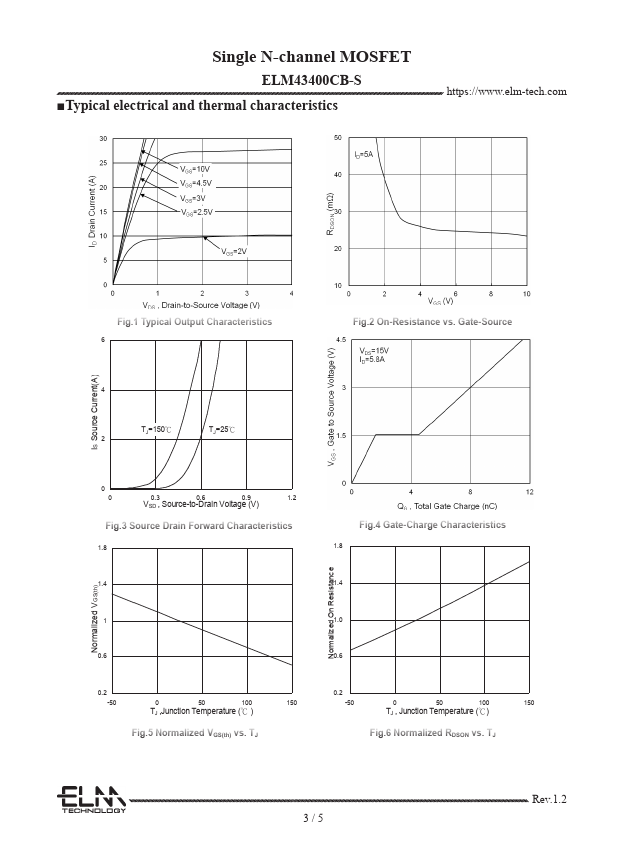

Additional preview pages of the ELM43400CB-S datasheet.

Product details

Description

ELM43400CB-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

Vds=30V.
Id=5.8A.
Rds(on) = 27mΩ (Vgs=10V).
Rds(on) = 32mΩ (Vgs=4.5V).
Rds(on) = 40mΩ (Vgs=2.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current Pulsed drain current Total power dissipation Storage temperature range Operating junction temperature range Ta=25°C Ta=70°C Ta=25°C Symbol Vds Vgs Id Idm Pd Tstg Tj Limit 30 ±12 5.8 4.9 20 1 -55 to 150 -55 to 150 Unit Note V V A A 2 W 3.
