ELM43401CA-S - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

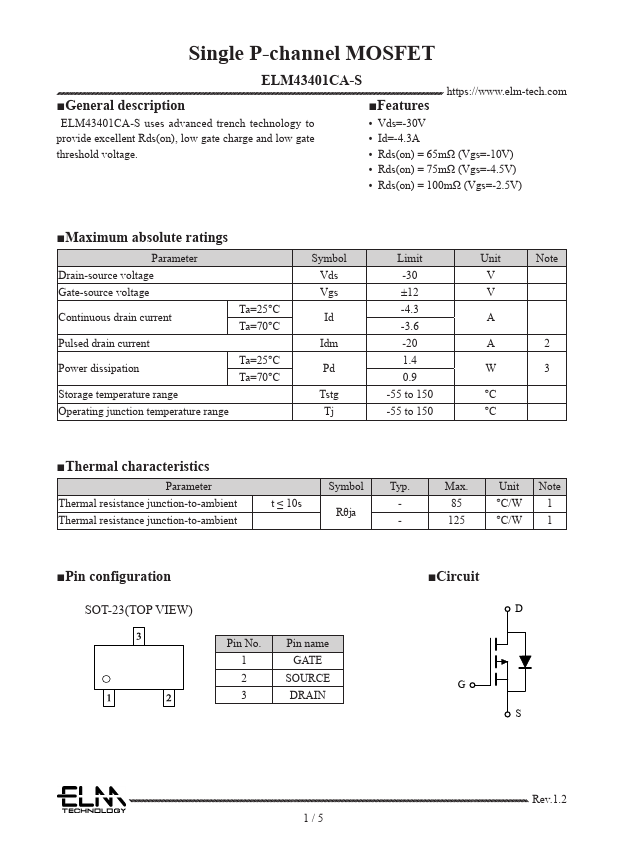

ELM43401CA-S Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM43401CA-S

Datasheet Details

Part number	ELM43401CA-S
Manufacturer	ELM
File Size	1.79 MB
Description	Single P-channel MOSFET
Datasheet	ELM43401CA-S Datasheet

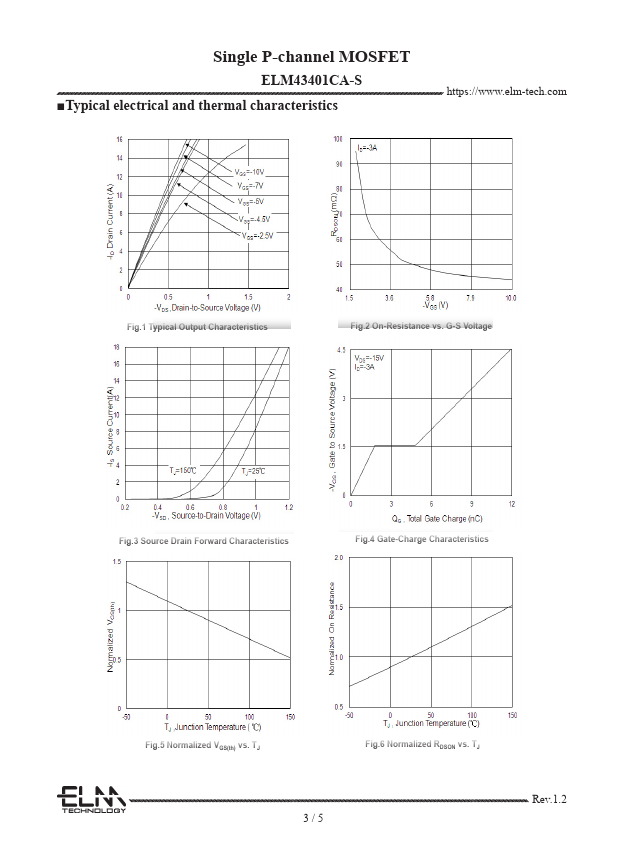

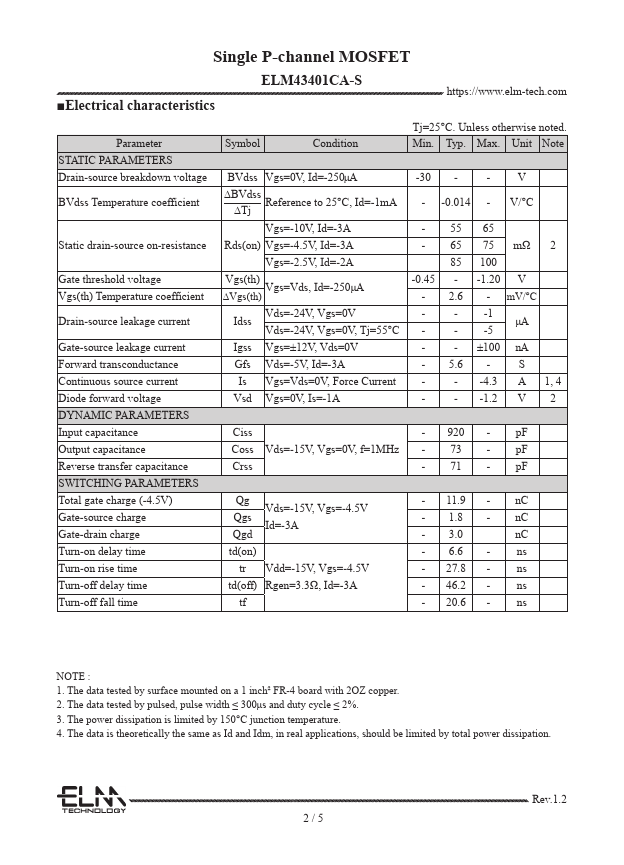

Additional preview pages of the ELM43401CA-S datasheet.

Product details

Features

ELM43401CA-S uses advanced trench technology to.
Vds=-30V provide excellent Rds(on), low gate charge and low gate.
Id=-4.3A threshold voltage.
Rds(on) = 65mΩ (Vgs=-10V).
Rds(on) = 75mΩ (Vgs=-4.5V).
Rds(on) = 100mΩ (Vgs=-2.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current Ta=25°C Ta=70°C Pulsed drain current Power dissipation Ta=25°C Ta=70°C Storage temperature range Opera.
