UF4002, UF4001 - ULTRA FAST EFFICIENT RECTIFIER DIODES

Name: UF4002
SKU: UF4002-1593115

EIC

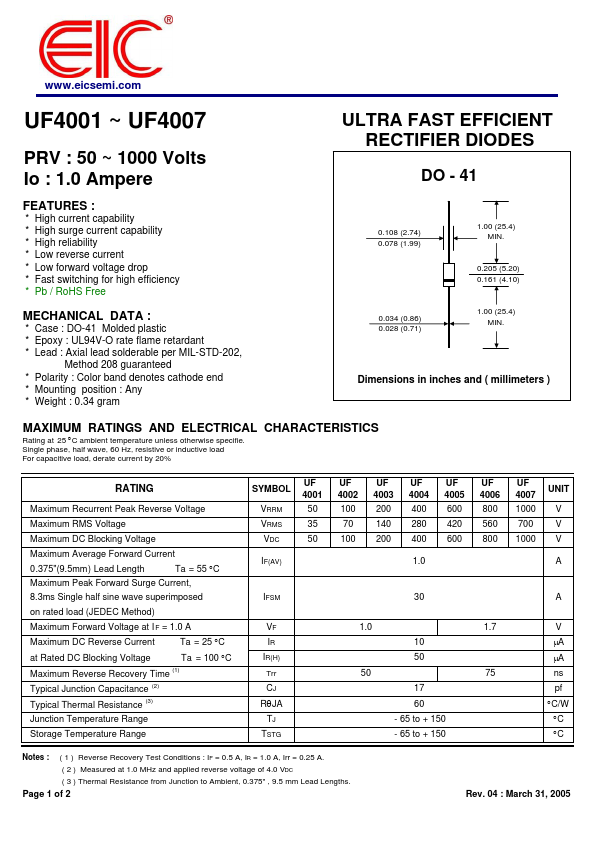

The UF4002 by EIC is a ULTRA FAST EFFICIENT RECTIFIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	UF4002, UF4001
Manufacturer	EIC
File Size	46.31 KB
Description	ULTRA FAST EFFICIENT RECTIFIER DIODES
Datasheet	UF4001-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: UF4002, UF4001. Please refer to the document for exact specifications by model.

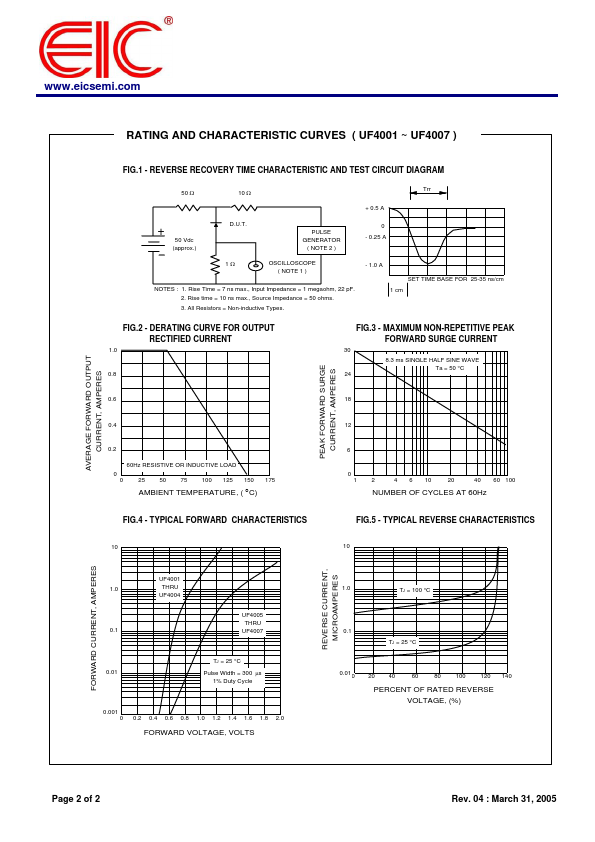

Additional preview pages of the UF4002 datasheet.
