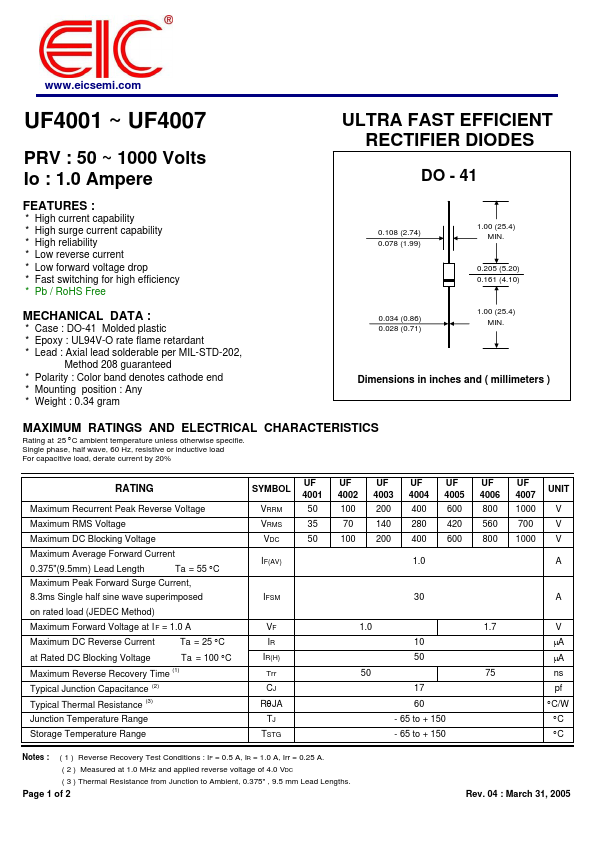

UF4004, UF4001 - ULTRA FAST EFFICIENT RECTIFIER DIODES

Name: UF4004
SKU: UF4004-1593117

EIC

The UF4004 by EIC is a ULTRA FAST EFFICIENT RECTIFIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	UF4004, UF4001
Manufacturer	EIC
File Size	46.31 KB
Description	ULTRA FAST EFFICIENT RECTIFIER DIODES
Datasheet	UF4001-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: UF4004, UF4001. Please refer to the document for exact specifications by model.

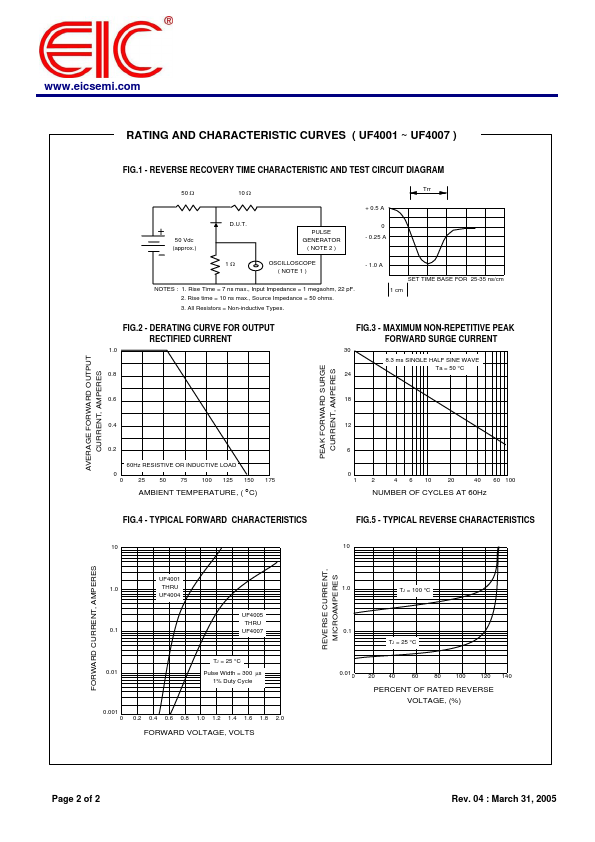

Additional preview pages of the UF4004 datasheet.
