BY550-200, BY550-50 - SILICON RECTIFIER DIODES

BY550-200 Description

BY550-50 ~ BY550-1000 PRV : 50 - 1000 Volts Io : 5.0 Amperes .

BY550-200 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-201AD Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderabl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BY550-200, BY550-50. Please refer to the document for exact specifications by model.

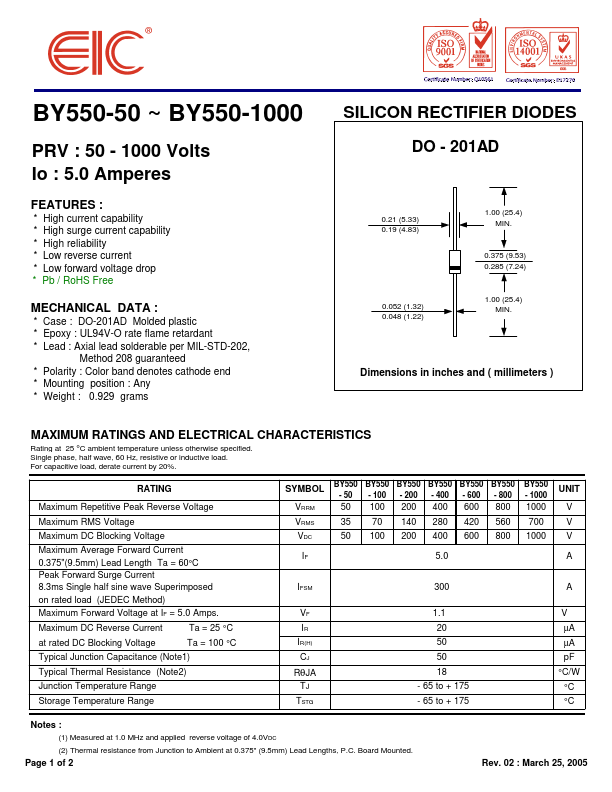

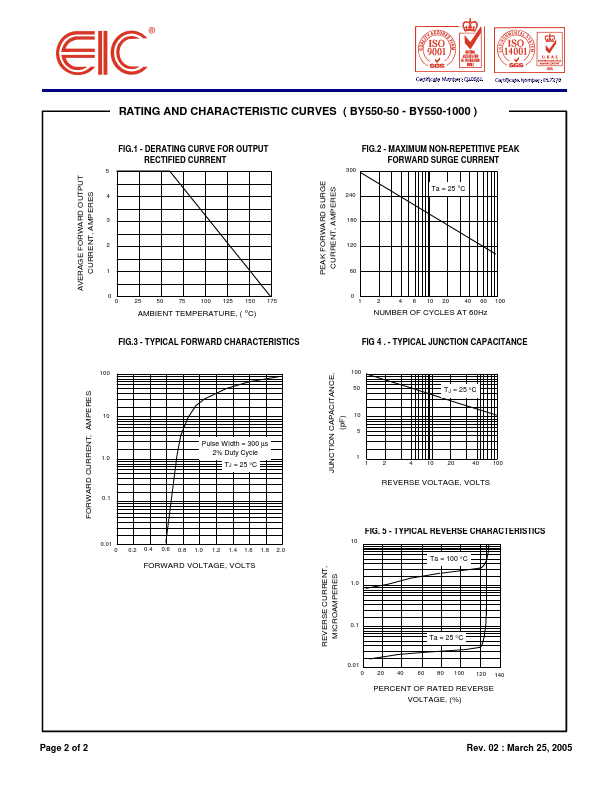

datasheet Preview Page 2

Datasheet Details

Part number
BY550-200, BY550-50
Manufacturer
EIC
File Size
39.82 KB
Datasheet
BY550-50-EIC.pdf
Description
SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: BY550-200, BY550-50.
Please refer to the document for exact specifications by model.
