BY550-600G, BY550-50G GLASS PASSIVATED JUNCTION SILICON RECTIFIER DIODES

BY550-600G Description

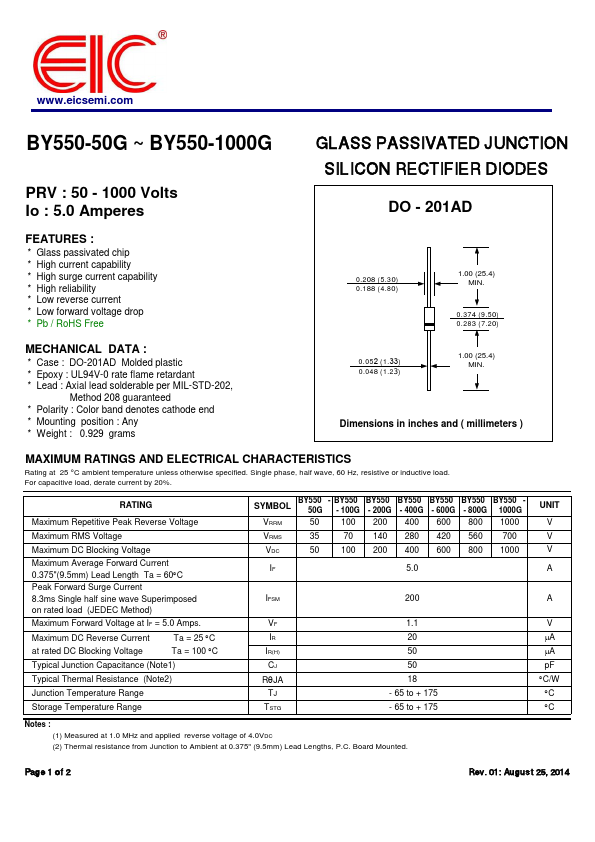

www.eicsemi.com BY550-50G ~ BY550-1000G PRV : 50 - 1000 Volts Io : 5.0 Amperes GLASS PASSIVATED JUNCTION SILICON RECTIFIER DIODES DO - 201AD FEATUR.

BY550-600G Features

* :
* Glass passivated chip
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 0.208 (5.30) 0.188 (4.80) 1.00 (25.4) MIN. 0.374 (9.50) 0.283 (7.20) MECHANICAL DATA :
* Case :

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BY550-600G, BY550-50G. Please refer to the document for exact specifications by model.

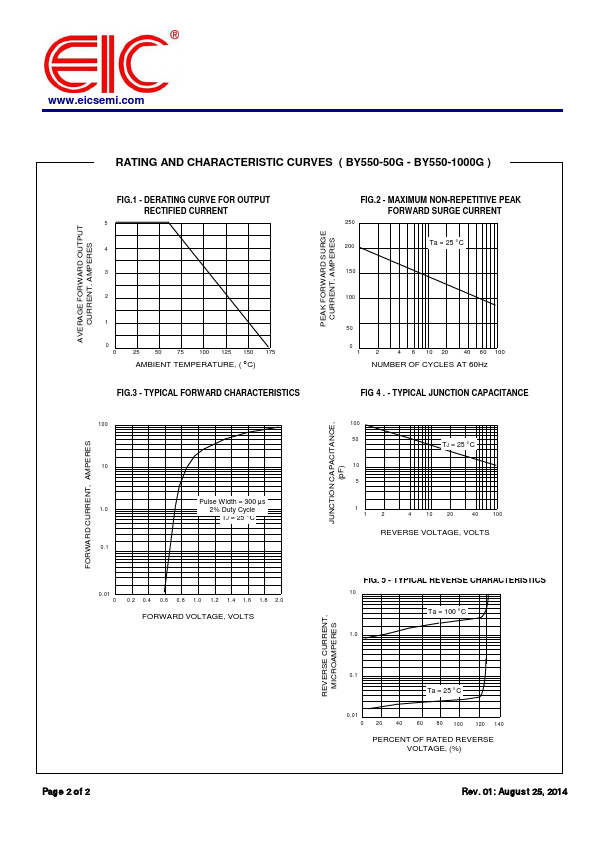

datasheet Preview Page 2

Datasheet Details

Part number
BY550-600G, BY550-50G
Manufacturer
EIC
File Size
97.46 KB
Datasheet
BY550-50G-EIC.pdf
Description
GLASS PASSIVATED JUNCTION SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: BY550-600G, BY550-50G.
Please refer to the document for exact specifications by model.
