20KP28A, 20KP20A - TRANSIENT VOLTAGE SUPPRESSORS

Name: 20KP28A
SKU: 20KP28A-1584971

EIC

The 20KP28A by EIC is a TRANSIENT VOLTAGE SUPPRESSORS. Below is the official datasheet preview.

Datasheet Details

Part number	20KP28A, 20KP20A
Manufacturer	EIC
File Size	574.03 KB
Description	TRANSIENT VOLTAGE SUPPRESSORS
Datasheet	20KP20A-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP28A, 20KP20A. Please refer to the document for exact specifications by model.

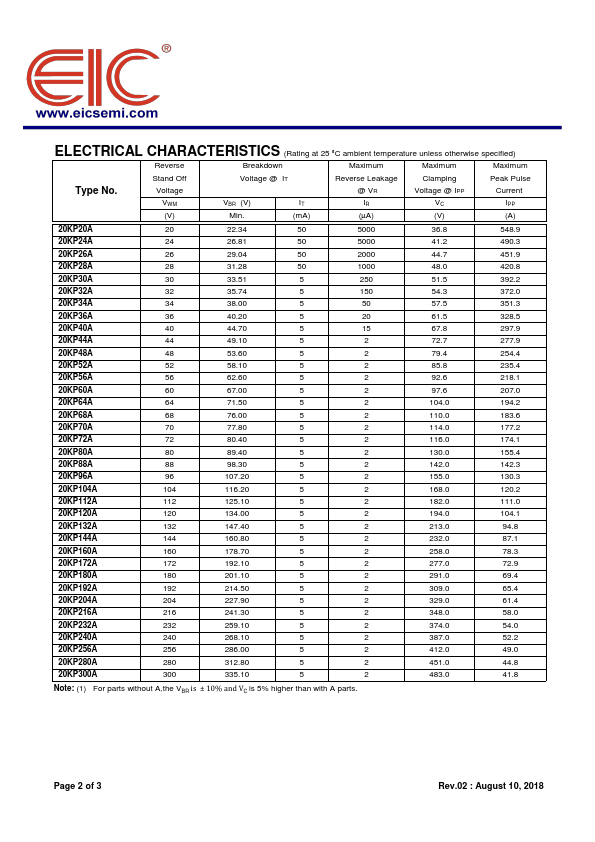

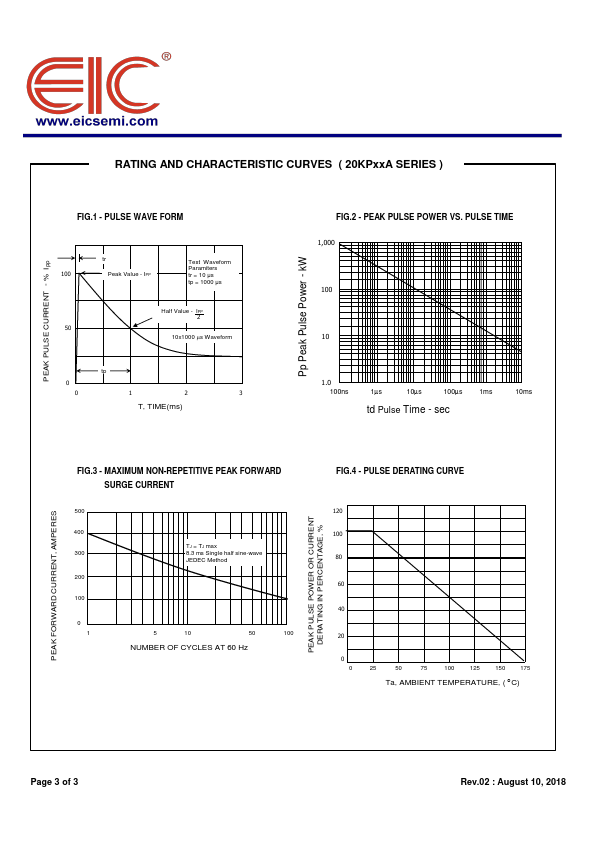

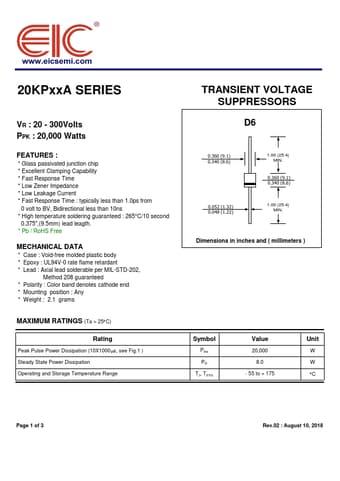

Additional preview pages of the 20KP28A datasheet.

:.
Glass passivated junction chip.
Excellent Clamping Capability.
Fast Response Time.
Low Zener Impedance.
Low Leakage Current.
Fast Response Time : typically less than 1.0ps from 0 volt to BV, Bidirectional less than 10ns.
High temperature soldering guaranteed : 265°C/10 second 0.375",(9.5mm) lead leagth.
Pb / RoHS Free.
