20KP20A - Axial Lead Transient Voltage Suppressors

20KP20A Description

Axial Lead Transient Voltage Suppressors (TVS) 20KP Series 20 To 300 V 20000W .
The 20KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient vo.

20KP20A Features

* u Glass passivated chip junction in P600 Package u Low leakage u Uni and Bidirectional unit u Excellent clamping capability u 20000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% u Fast response time: typically less than 1.0ps from 0 Volts to VBR min u Typical IR l

📥 Download Datasheet

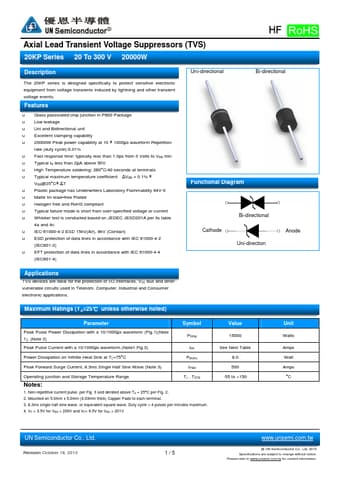

Preview of 20KP20A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
20KP20A
Manufacturer
UN Semiconductor
File Size
609.63 KB
Datasheet
20KP20A-UNSemiconductor.pdf
Description
Axial Lead Transient Voltage Suppressors
