STUN061 (STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

STUN061 Description

www.DataSheet4U.com STUN06I - STUN5D0 VBR : 6.8 - 200 Volts PPK : 1500 Watts .

STUN061 Features

* :
* 1500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V
* Pb / RoHS Free SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMC (DO-214AB)

STUN061 Applications

* For bi-directional altered the third letter of type from "U" to be "B". Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at

📥 Download Datasheet

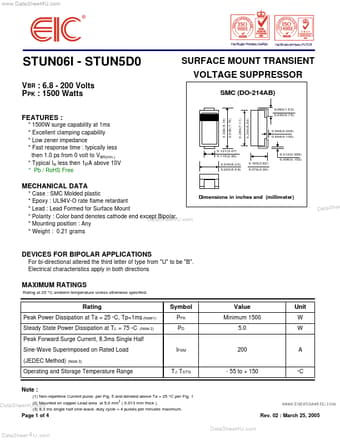

Preview of STUN061 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STUN061
Manufacturer
EIC discrete Semiconductors
File Size
246.84 KB
Datasheet
STUN061_EICdiscreteSemiconductors.pdf
Description
(STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
