DIM400XSM45-TS001 - Single Switch IGBT

Dynex

The DIM400XSM45-TS001 by Dynex is a Single Switch IGBT. Below is the official datasheet preview.

📥 Download Datasheet

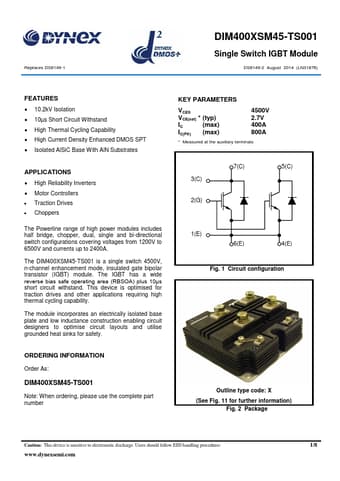

DIM400XSM45-TS001 Single Switch IGBT by Dynex - Datasheet Preview — Official preview page of the DIM400XSM45-TS001 Single Switch IGBT datasheet (Dynex).

Datasheet Details

Part number	DIM400XSM45-TS001
Manufacturer	Dynex
File Size	439.01 KB
Description	Single Switch IGBT
Datasheet	DIM400XSM45-TS001-Dynex.pdf
Additional preview pages of the DIM400XSM45-TS001 datasheet.

DIM400XSM45-TS001 Product details

Features

10.2kV Isolation.
10µs Short Circuit Withstand.
High Thermal Cycling Capability.
High Current Density Enhanced DMOS SPT.
Isolated AlSiC Base With AlN Substrates.
