DIM400XCM45-TS001 - IGBT

Dynex

The DIM400XCM45-TS001 by Dynex is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

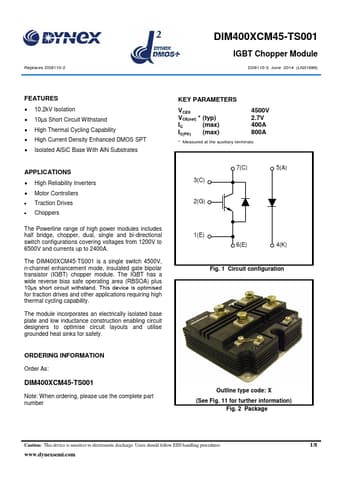

DIM400XCM45-TS001 IGBT by Dynex - Datasheet Preview — Official preview page of the DIM400XCM45-TS001 IGBT datasheet (Dynex).

Datasheet Details

Part number	DIM400XCM45-TS001
Manufacturer	Dynex
File Size	472.33 KB
Description	IGBT
Datasheet	DIM400XCM45-TS001-Dynex.pdf
Additional preview pages of the DIM400XCM45-TS001 datasheet.

DIM400XCM45-TS001 Product details

Features

10.2kV Isolation.
10µs Short Circuit Withstand.
High Thermal Cycling Capability.
High Current Density Enhanced DMOS SPT.
Isolated AlSiC Base With AlN Substrates.
