DFP75N75 - N-Channel MOSFET

Product Overview

DnI

DFP75N75 N-Channel MOSFET by DnI - Datasheet Preview — Datasheet preview – DFP75N75

Datasheet Details

Part number	DFP75N75
Manufacturer	DnI
File Size	754.74 KB
Description	N-Channel MOSFET
Datasheet	DFP75N75_DnI.pdf

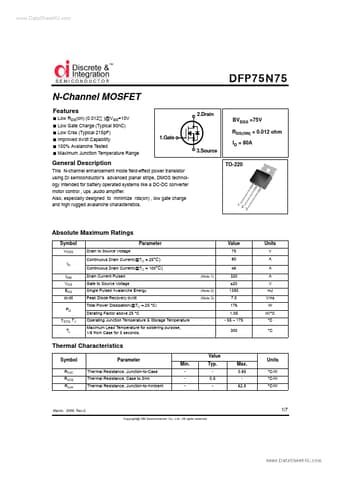

Additional preview pages of the DFP75N75 datasheet.

Product details

Description

This N-channel enhancement mode field-effect power transistor using DI semiconductor’s advanced planar stripe, DMOS technology intended for battery operated systems like a DC-DC converter motor control , ups ,audio amplifier.

Features

Low RDS(on) (0.012Ω )@VGS=10V Low Gate Charge (Typical 90nC) Low Crss (Typical 215pF) Improved dv/dt Capability 100% Avalanche Tested Maximum Junction Temperature Range 2.Drain BVDSS =75V 1.Gate 3.Source RDS(ON) = 0.012 ohm ID = 80A General.
