DBT152F-600 - Standard Gate SCR

Product Overview

DnI

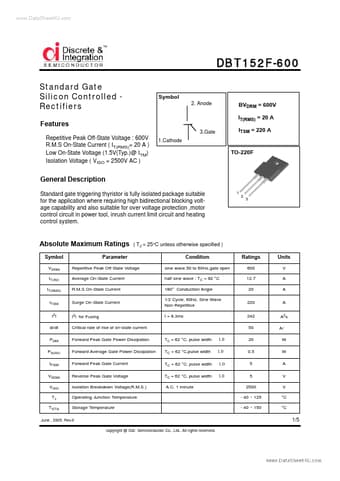

DBT152F-600 Standard Gate SCR by DnI - Datasheet Preview — Datasheet preview – DBT152F-600

Datasheet Details

Part number	DBT152F-600
Manufacturer	DnI
File Size	616.65 KB
Description	Standard Gate SCR
Datasheet	DBT152F-600_DnI.pdf
Additional preview pages of the DBT152F-600 datasheet.

Product details

Description

Standard gate triggering thyristor is fully isolated package suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system.

Features

3.Gate Symbol 2. Anode BVDRM = 600V IT(RMS) = 20 A ITSM = 220 A Repetitive Peak Off-State Voltage : 600V R. M. S On-State Current ( IT(RMS)= 20 A ) Low On-State Voltage (1.5V(Typ. )@ ITM) Isolation Voltage ( VISO = 2500V AC ) 1.Cathode TO-220F General.
