DBT152-600 - Standard Gate SCR

Product Overview

DnI

DBT152-600 Standard Gate SCR by DnI - Datasheet Preview — Datasheet preview – DBT152-600

Datasheet Details

Part number	DBT152-600
Manufacturer	DnI
File Size	634.01 KB
Description	Standard Gate SCR
Datasheet	DBT152-600_DnI.pdf

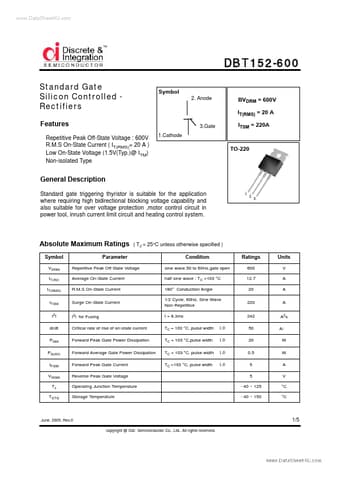

Additional preview pages of the DBT152-600 datasheet.

Product details

Description

Standard gate triggering thyristor is suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system.

Features

Repetitive Peak Off-State Voltage : 600V R. M. S On-State Current ( IT(RMS)= 20 A ) Low On-State Voltage (1.5V(Typ. )@ ITM) Non-isolated Type 1.Cathode Symbol 2. Anode BVDRM = 600V IT(RMS) = 20 A 3.Gate ITSM = 220A TO-220 General.
