ZXTPS720MCTA, ZXTPS720MC - 40V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION

Name: ZXTPS720MCTA
SKU: ZXTPS720MCTA-936996

Diodes

The ZXTPS720MCTA by Diodes is a 40V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION. Below is the official datasheet preview.

📥 Download Datasheet

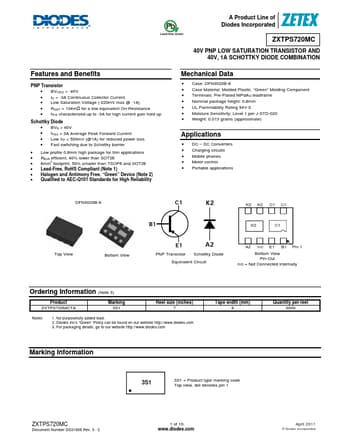

ZXTPS720MCTA 40V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION by Diodes - Datasheet Preview — Official preview page of the **ZXTPS720MCTA** 40V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION datasheet (Diodes).

Datasheet Details

Part number	ZXTPS720MCTA, ZXTPS720MC
Manufacturer	DIODES
File Size	229.94 KB
Description	40V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION
Datasheet	ZXTPS720MC-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: ZXTPS720MCTA, ZXTPS720MC. Please refer to the document for exact specifications by model.
Additional preview pages of the ZXTPS720MCTA datasheet.

ZXTPS720MCTA Product details

Features

PNP Transistor.
BVCEO > -40V.
IC = -3A Continuous Collector Current.
Low Saturation Voltage (-220mV max @ -1A).
RSAT = 104mΩ for a low equivalent On-Resistance.
hFE characterized up to -3A for high current gain hold up Schottky Diode.
BVR > 40V.
IFAV = 3A Average Peak Forward Current.
Low VF < 500mV (@1A) for reduced power loss.
Fast switching due to Schottky barrier.
Low profile 0.8mm high package for thin.
