ZXTPS718MC - 20V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION

Diodes

📥 Download Datasheet

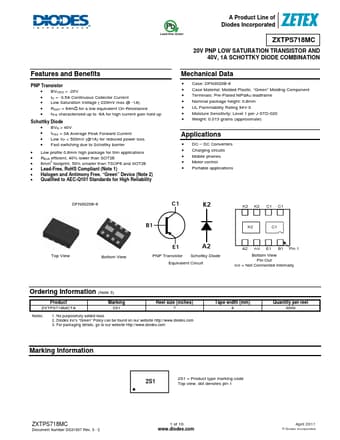

ZXTPS718MC Datasheet Preview — Preview of ZXTPS718MC PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZXTPS718MC
Manufacturer	DIODES
File Size	230.69 KB
Description	20V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION
Datasheet	ZXTPS718MC-Diodes.pdf

ZXTPS718MC Product details

Features

PNP Transistor.
BVCEO > -20V.
IC = -3.5A Continuous Collector Current.
Low Saturation Voltage (-220mV max @ -1A).
RSAT = 64mΩ for a low equivalent On-Resistance.
hFE characterized up to -6A for high current gain hold up Schottky Diode.
BVR > 40V.
IFAV = 3A Average Peak Forward Current.
Low VF < 500mV (@1A) for reduced power loss.
Fast switching due to Schottky barrier.
Low profile 0.8mm high package for thi.
