ZXTP19060CG - 60V PNP MEDIUM POWER TRANSISTOR

Diodes

📥 Download Datasheet

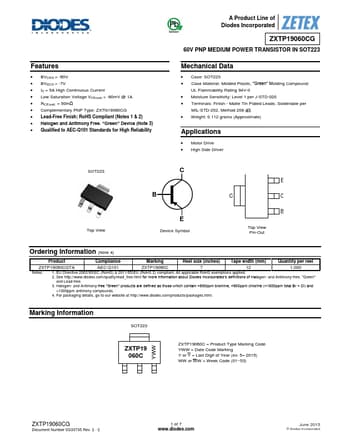

ZXTP19060CG Datasheet Preview — Preview of ZXTP19060CG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZXTP19060CG
Manufacturer	DIODES
File Size	770.03 KB
Description	60V PNP MEDIUM POWER TRANSISTOR
Datasheet	ZXTP19060CG-Diodes.pdf

ZXTP19060CG Product details

Features

BVCEO > -60V.
BVECO > -7V.
IC = 5A High Continuous Current.
Low Saturation Voltage VCE(sat) < -80mV @ 1A.
RCE(sat) = 50mΩ.
Complementary PNP Type: ZXTN19060CG.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability A Product Line of Diodes Incorporated Green ZXTP19060CG 60V PNP MEDIUM POWER.
