ZXTP19060CFF - 60V PNP MEDIUM POWER TRANSISTOR

Name: ZXTP19060CFF
SKU: ZXTP19060CFF-1101902

Diodes

📥 Download Datasheet

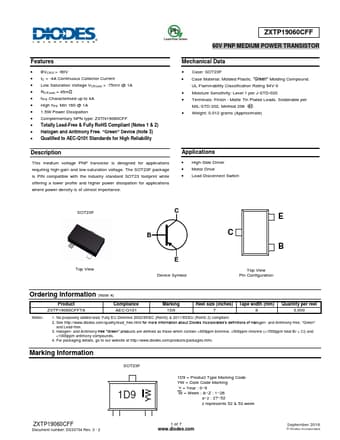

ZXTP19060CFF Datasheet Preview — Preview of ZXTP19060CFF PDF

Datasheet Details

Part number	ZXTP19060CFF
Manufacturer	DIODES
File Size	414.39 KB
Description	60V PNP MEDIUM POWER TRANSISTOR
Datasheet	ZXTP19060CFF-Diodes.pdf

ZXTP19060CFF Product details

Description

This medium voltage PNP transistor is designed for applications requiring high-gain and low-saturation voltage. Case: SOT23F Case Material: Molded Plastic. Moisture Sensitivity: Level 1 per J-S

Features

BVCEO > -60V.
IC = -4A Continuous Collector Current.
Low Saturation Voltage VCE(sat) < -75mV @ 1A.
RCE(sat) = 45mΩ.
hFE Characterised up to 4A.
High hFE Min 160 @ 1A.
1.5W Power Dissipation.
Complementary NPN type: ZXTN19060CFF.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
